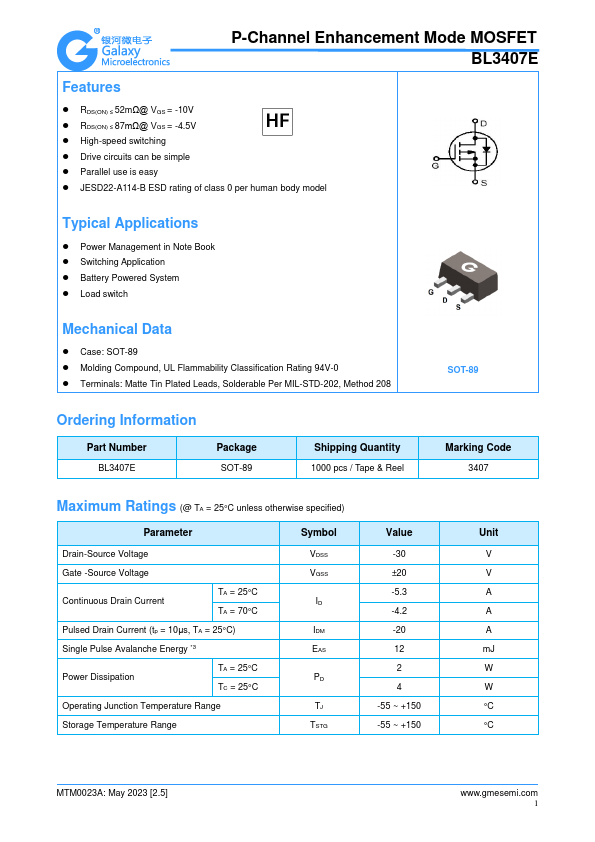

BL3407E
Features
- RDS(ON) ≤ 52mΩ@ VGS = -10V
- RDS(ON) ≤ 87mΩ@ VGS = -4.5V
- High-speed switching
- Drive circuits can be simple
- Parallel use is easy
- JESD22-A114-B ESD rating of class 0 per human body model
Typical Applications
- Power Management in Note Book
- Switching Application
- Battery Powered System
- Load switch
Mechanical Data
- Case: SOT-89
- Molding pound, UL Flammability Classification Rating 94V-0
- Terminals: Matte Tin Plated Leads, Solderable Per MIL-STD-202, Method 208
SOT-89
Ordering Information
Part Number BL3407E
Package SOT-89
Shipping Quantity 1000 pcs / Tape & Reel
Marking Code 3407
Maximum Ratings (@ TA = 25°C unless otherwise specified)
Parameter
Drain-Source Voltage Gate -Source Voltage
Continuous Drain Current
TA = 25°C TA = 70°C
Pulsed Drain Current (tp = 10μs, TA = 25°C) Single Pulse Avalanche Energy
- 3
Power Dissipation
TA = 25°C TC = 25°C
Operating Junction Temperature Range
Storage Temperature Range
Symbol VDSS VGSS
IDM EAS
TJ...
