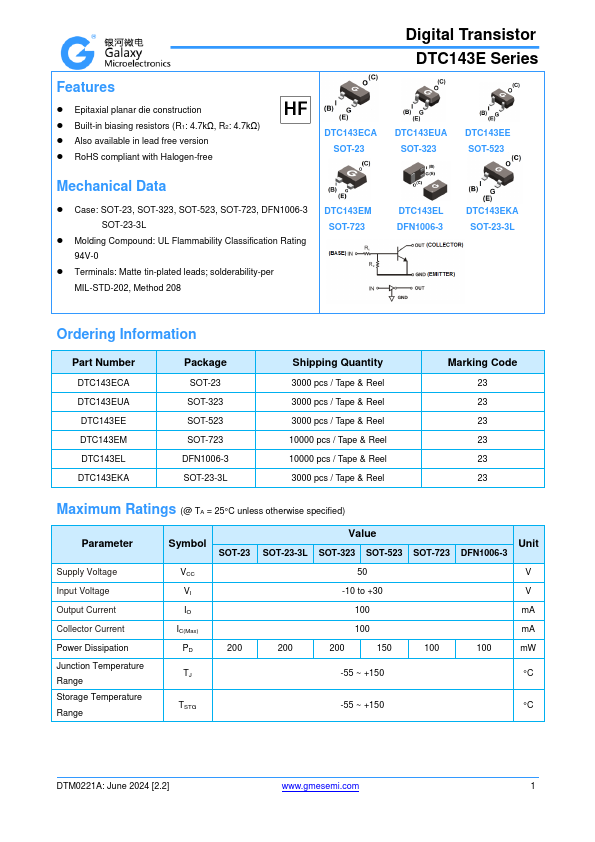

DTC143EE Datasheet Digital Transistor

Manufacturer: Galaxy Microelectronics

This datasheet includes multiple variants, all published together in a single manufacturer document.

Datasheet Details

Epitaxial planar die construction.
Built-in biasing resistors (R1: 4.7kΩ, R2: 4.7kΩ).
Also available in lead free version.
RoHS compliant with Halogen-free Digital Transistor DTC143E Series DTC143ECA SOT-23 DTC143EUA SOT-323 DTC143EE SOT-523 Mechanical Data.
Case: SOT-23, SOT-323, SOT-523, SOT-723, DFN1006-3 SOT-23-3L.
Molding Compound: UL Flammability Classification Rating 94V-0.
Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 2.
