DTC143EUA

Manufacturer: Galaxy Microelectronics

DTC143EUA datasheet by Galaxy Microelectronics.

This datasheet includes multiple variants, all published together in a single manufacturer document.

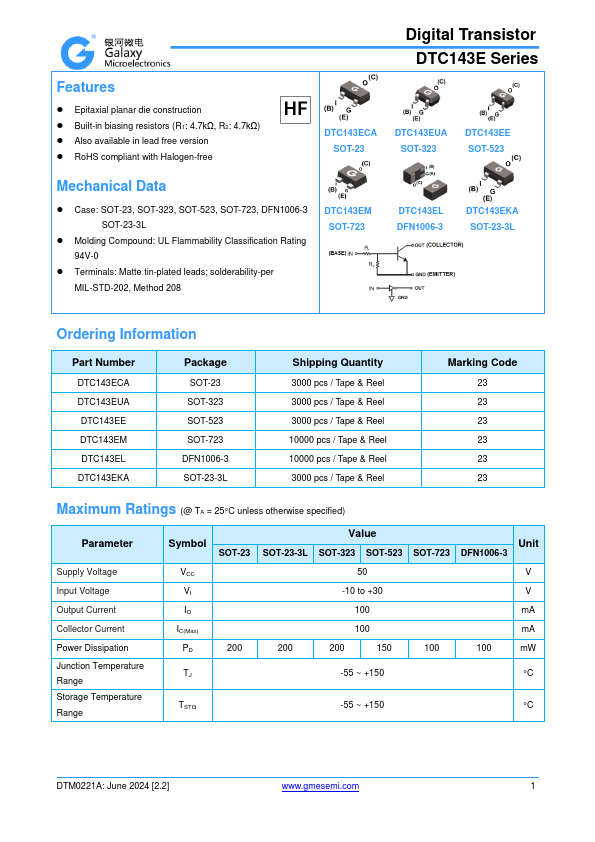

DTC143EUA datasheet preview

DTC143EUA Datasheet Details

Part number DTC143EUA
Datasheet DTC143EUA DTC143ECA Datasheet (PDF)
File Size 400.87 KB
Manufacturer Galaxy Microelectronics
Description Digital Transistor

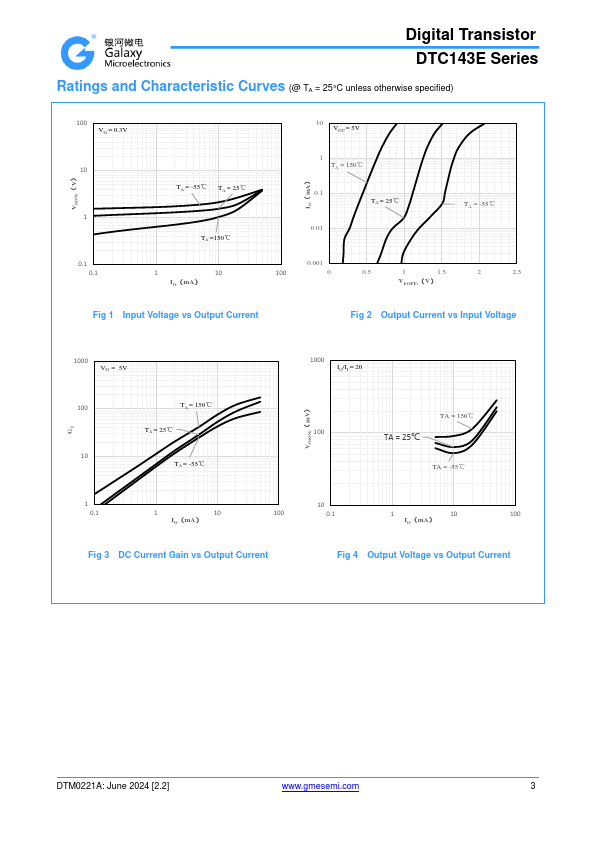

DTC143EUA page 2 DTC143EUA page 3

DTC143EUA Overview

Features Epitaxial planar die construction Built-in biasing resistors (R1: 4.7kΩ) Also available in lead free version RoHS pliant with Halogen-free Digital Transistor DTC143E Series DTC143ECA SOT-23 DTC143EUA SOT-323 DTC143EE SOT-523 Case: SOT-23, SOT-323, SOT-523, SOT-723, DFN1006-3 SOT-23-3L Molding pound:.

DTC143EUA Key Features

  • Epitaxial planar die construction
  • Built-in biasing resistors (R1: 4.7kΩ, R2: 4.7kΩ)
  • Also available in lead free version
  • RoHS pliant with Halogen-free
  • Case: SOT-23, SOT-323, SOT-523, SOT-723, DFN1006-3 SOT-23-3L
  • Molding pound: UL Flammability Classification Rating 94V-0
  • Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 208
  • 10 to +30
  • 55 ~ +150
  • 55 ~ +150
