DTC143EUA - NPN Digital Transistors

Download the DTC143EUA datasheet PDF. This datasheet also covers the DTC143EM variant, as both devices belong to the same npn digital transistors family and are provided as variant models within a single manufacturer datasheet.

Key Features

  • Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see equivalent circuit). The bias resistors consist of thin-film resistors with complete isolation to allow negative biasing of the input. They also have the advantage of almost completely eliminating parasitic effects. Only the on/off conditions need to be set for operation, making device design easy.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (DTC143EM-SeCoS.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
DTC143EUA DIGITAL TRANSISTOR JCET
DTC143EUA NPN Digital Transistor LGE
DTC143EUA Digital Transistor GME
DTC143EUA NPN 100mA 50V Digital Transistors Rohm
DTC143EUAFRA Digital Transistor ROHM

Other Datasheets by SeCoS Halbleitertechnologie GmbH

Part Number Description
DTC143ECA NPN Digital Transistors
DTC143EE NPN Digital Transistors
DTC143EM NPN Digital Transistors
DTC143ESA NPN Digital Transistors
DTC143TCA NPN Digital Transistors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

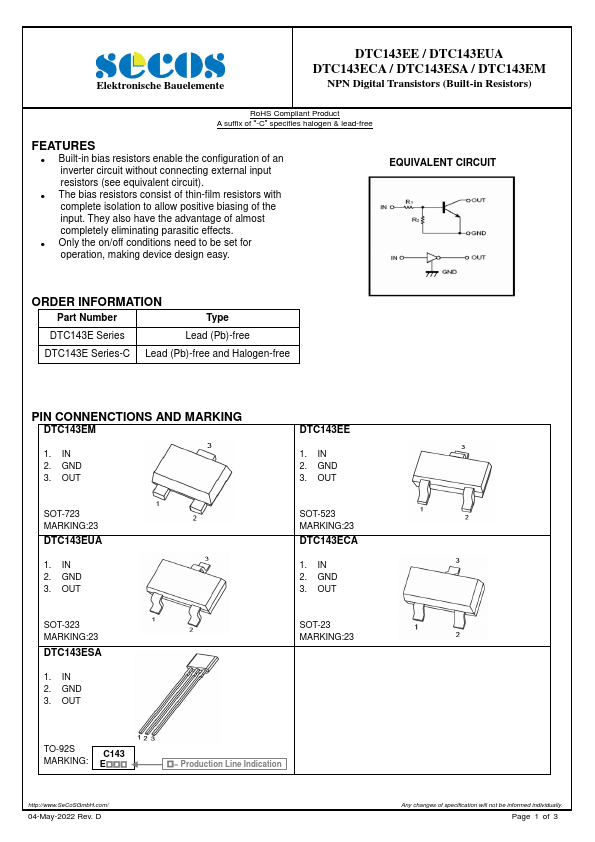

Elektronische Bauelemente DTC143EM/DTC143EE/DTC143EUA DTC143ECA/DTC143ESA NPN Digital Transistors (Built-in Resistors) RoHS Compliant Product A suffix of “-C” specifies halogen & lead-free FEATURES Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see equivalent circuit). The bias resistors consist of thin-film resistors with complete isolation to allow negative biasing of the input. They also have the advantage of almost completely eliminating parasitic effects. Only the on/off conditions need to be set for operation, making device design easy.
