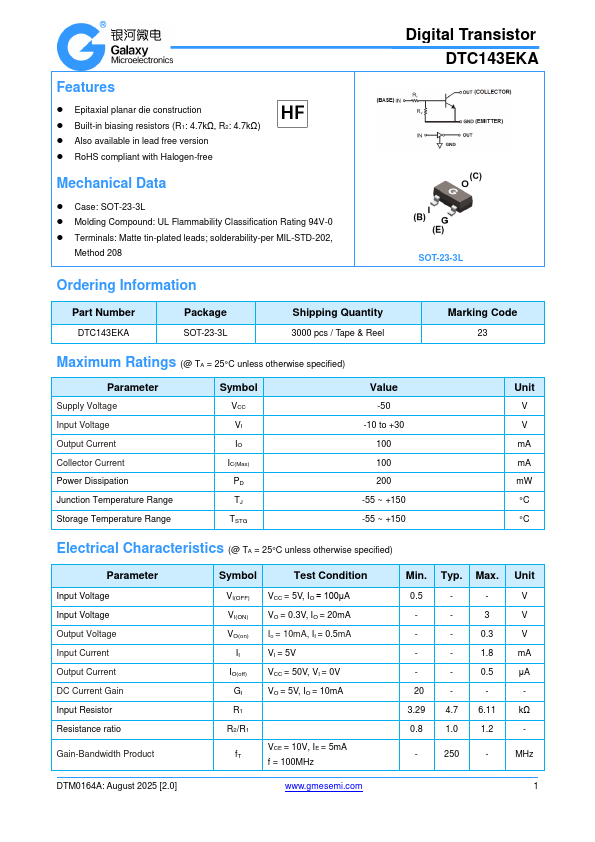

Datasheet Summary
Digital Transistor DTC143EKA
Features
- Epitaxial planar die construction
- Built-in biasing resistors (R1: 4.7kΩ, R2: 4.7kΩ)
- Also available in lead free version
- RoHS pliant with Halogen-free
Mechanical Data
- Case: SOT-23-3L
- Molding pound: UL Flammability Classification Rating 94V-0
- Terminals: Matte tin-plated leads; solderability-per MIL-STD-202,
Method 208

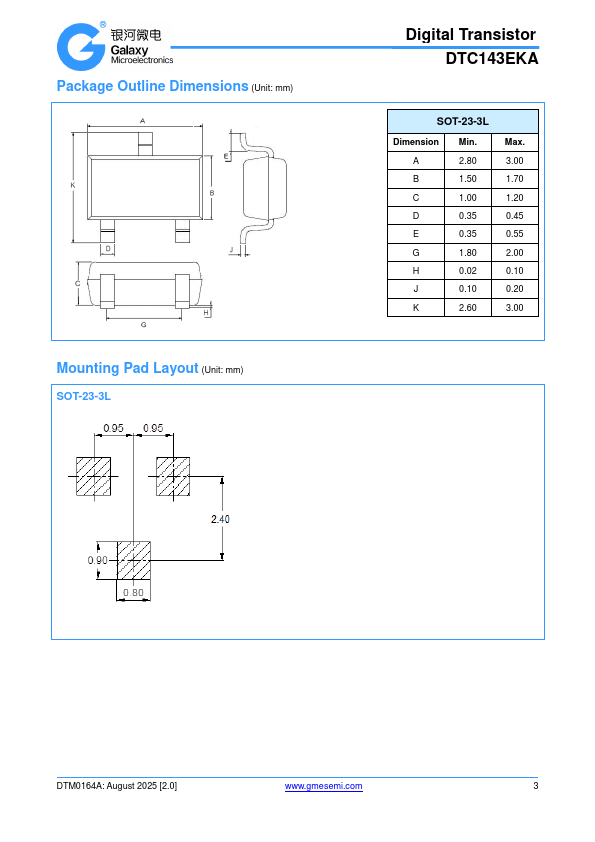

SOT-23-3L
Ordering Information
Part Number
Package
SOT-23-3L
Shipping Quantity
3000 pcs / Tape & Reel
Marking Code
Maximum Ratings (@ TA = 25°C unless otherwise specified)
Parameter
Supply Voltage Input Voltage Output Current Collector Current Power Dissipation Junction Temperature Range Storage...
