MMBTA94 - PNP High Voltage Amplifier

Key Features

  • z Collector-Emitter voltage:VCEO=-400V. z Collector dissipation:PC=350mW. Pb Lead-free z Low collector-emitter saturation voltage. MMBTA94.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MMBTA94 SOT-23-3L Plastic-Encapsulate Transistors Avic Technology
MMBTA94 High-Voltage PNP Transistor Surface Mount Weitron Technology
MMBTA94 HIGH VOLTAGE TRANSISTOR UTC
MMBTA94 PNP Silicon High Voltage Transistor MCC
MMBTA94 Silicon PNP transistor BLUE ROCKET ELECTRONICS

Other Datasheets by Galaxy Microelectronics

Part Number Description
MMBTA92 PNP High Voltage Amplifier
MMBTA93 PNP High Voltage Amplifier
MMBTA05 NPN General Purpose Transistor
MMBTA06 NPN General Purpose Transistor
MMBTA13 NPN Darlington Amplifier Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

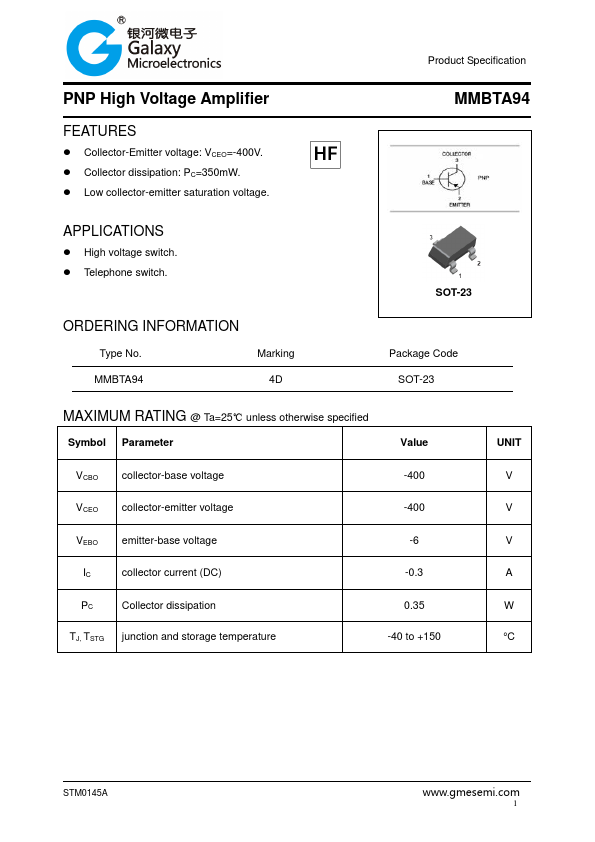

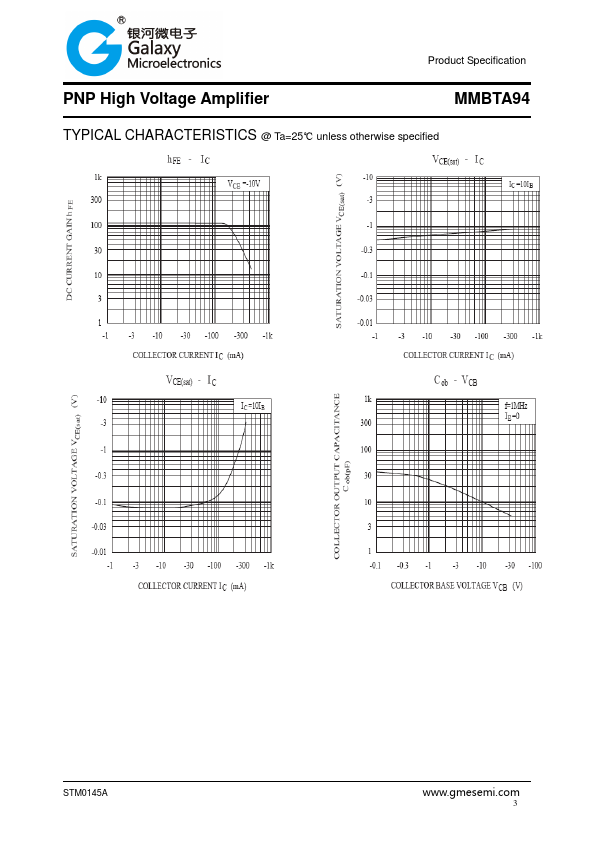

Production specification PNP High Voltage Amplifier FEATURES z Collector-Emitter voltage:VCEO=-400V. z Collector dissipation:PC=350mW. Pb Lead-free z Low collector-emitter saturation voltage. MMBTA94 APPLICATIONS z High voltage switch. z Telephone switch. ORDERING INFORMATION Type No. Marking MMBTA94 4D SOT-23 Package Code SOT-23 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Symbol Parameter Value VCBO collector-base voltage -400 VCEO collector-emitter voltage -400 VEBO emitter-base voltage -6 IC collector current (DC) -0.3 PC Collector dissipation 0.35 Tj ,Tstg junction and storage temperature -40 to +150 UNIT V V V A W °C C148 Rev.B www.gmicroelec.
