MMBTA94
MMBTA94 is PNP Silicon High Voltage Transistor manufactured by Micro Commercial Components.
Features
- Halogen Free. “Green” Device (Note 1)
- Moisture Sensitivity Level 1
- Epoxy Meets UL 94 V-0 Flammability Rating
- Lead Free Finish/Ro HS pliant ("P" Suffix Designates Ro HS pliant. See Ordering Information)
Maximum Ratings @ 25°C Unless Otherwise Specified
- Operating Junction Temperature Range: -55℃ to +150℃
- Storage Temperature Range: -55℃ to +150℃
- Thermal Resistance: 357℃/W Junction to Ambient
Parameter
Symbol Rating Unit
Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Continuous Collector Current Power Dissipation
VCBO VCEO VEBO
IC PD
-400
-400
-5
-100 m A
350 m W

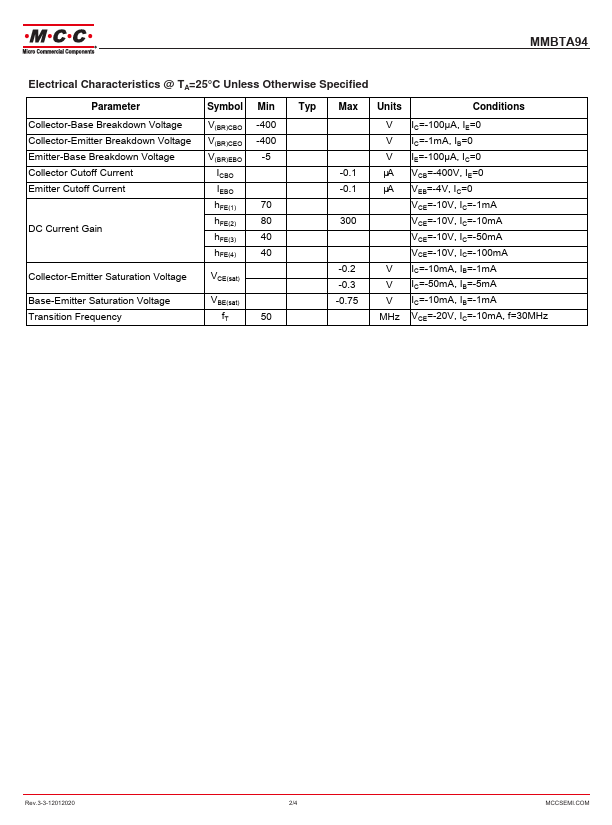

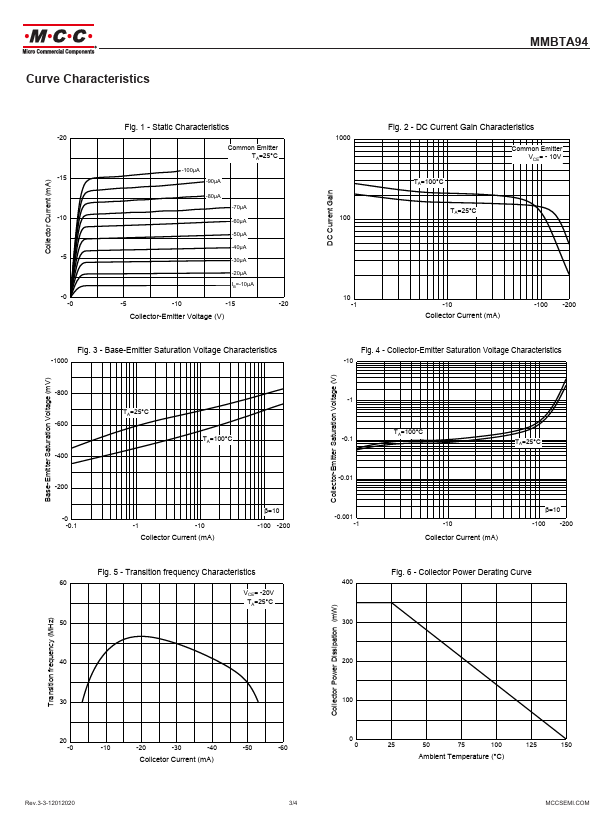

Note: 1. Halogen free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony pounds.
Marking: 4D
Internal Structure 3
1 2
1.BASE 2.EMITTER 3.COLLECTOR
PNP Silicon High Voltage Transistor
SOT-23
DIMENSIONS
INCHES MIN MAX
MM MIN MAX
A 0.110 0.120 2.80...
