MMBTA94 - HIGH VOLTAGE TRANSISTOR

Features

  • PNP.

📥 Download Datasheet

Datasheet preview – MMBTA94

Datasheet Details

Part number MMBTA94
Manufacturer UTC
File Size 74.48 KB
Description HIGH VOLTAGE TRANSISTOR
Datasheet download datasheet MMBTA94 Datasheet
Additional preview pages of the MMBTA94 datasheet.

📁 Similar Datasheet

  • MMBTA94 - SOT-23-3L Plastic-Encapsulate Transistors (Avic Technology)
  • MMBTA94 - High-Voltage PNP Transistor Surface Mount (Weitron Technology)
  • MMBTA94 - PNP Silicon High Voltage Transistor (MCC)
  • MMBTA94 - Silicon PNP transistor (BLUE ROCKET ELECTRONICS)
  • MMBTA94 - PNP High Voltage Amplifier (GME)
  • MMBTA94 - PNP Silicon Epitaxial Planar Transistor (SEMTECH)
  • MMBTA94 - Surface mount High Voltage Transistors (Diotec Semiconductor)
  • MMBTA94 - PNP Silicon Epitaxial Transistor (SeCoS)
  • MMBTA94 - PNP GENERAL PURPOSE TRANSISTOR (LITE-ON)
  • MMBTA94 - PNP EPITAXIAL PLANAR TRANSISTOR (First Silicon)
Other Datasheets by UTC
  • MMBTA92 - HIGH VOLTAGE PNP TRANSISTOR
  • MMBTA05 - AMPLIFIER TRANSISTOR
  • MMBTA06 - AMPLIFIER TRANSISTOR
  • MMBTA13 - DARLINGTON TRANSISTOR
  • MMBTA14 - DARLINGTON TRANSISTOR
  • MMBTA42 - HIGH VOLTAGE TRANSISTOR
  • MMBTA43 - HIGH VOLTAGE TRANSISTOR
  • MMBTA44 - (MMBTA44 / MMBTA45) HIGH VOLTAGE TRANSISTOR NPN EPITAXIAL SILICON TRANSISTOR

Full PDF Text Transcription

Click to expand full text

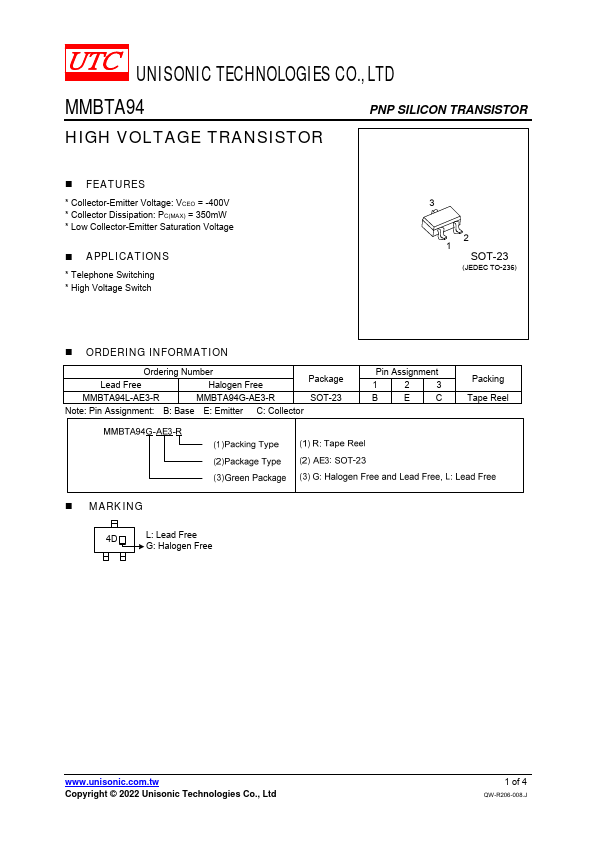

www.DataSheet4U.com UNISONIC TECHNOLOGIES CO., LTD MMBTA94 HIGH VOLTAGE TRANSISTOR FEATURES PNP SILICON TRANSISTOR *Collector-Emitter voltage: VCEO=-400V *Collector Dissipation: PC(MAX)=350mW *Low collector-Emitter saturation voltage 3 APPLICATIONS *Telephone switching *High voltage switch 1 2 SOT-23 *Pb-free plating product number: MMBTA94L ORDERING INFORMATION Order Number Normal Lead Free Plating MMBTA94-AE3-R MMBTA94L-AE3-R Package SOT-23 Pin Assignment 1 2 3 E B C Packing Tape Reel MMBTA94L-AE3-R (1)Packing Type (2)Package Type (3)Lead Plating (1) R: Tape Reel (2) AE3: SOT-23 (3) L: Lead Free Plating, Blank: Pb/Sn MARKING 4D Lead Plating www.unisonic.com.tw Copyright © 2005 Unisonic Technologies Co.
