PS1117-ADJ Overview

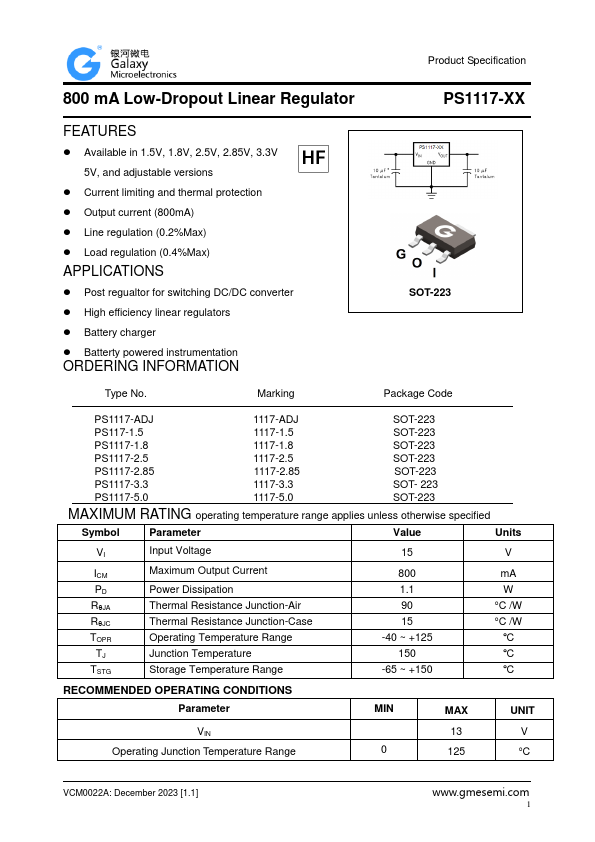

Product Specification 800 mA Low-Dropout Linear Regulator PS1117-XX.
PS1117-ADJ Key Features
- Available in 1.5V, 1.8V, 2.5V, 2.85V, 3.3V 5V, and adjustable versions
- Current limiting and thermal protection
- Output current (800mA)
- Line regulation (0.2%Max)
- Load regulation (0.4%Max)
PS1117-ADJ Applications
- Post regualtor for switching DC/DC converter
