TBL3407 - P-Channel Enhancement Mode MOSFET

Datasheet Summary

Features

  • RDS(ON) ≤ 52mΩ@ VGS = -10V.
  • RDS(ON) ≤ 87mΩ@ VGS = -4.5V.
  • High-speed Switching.
  • Drive Circuits Can be Simple.
  • Parallel Use is Easy.
  • RoHS compliant with Halogen-free.
  • Qualified to AEC-Q101 Standards TBL3407 SOT-23 TBL3407-3L SOT-23-3L Typical.

📥 Download Datasheet

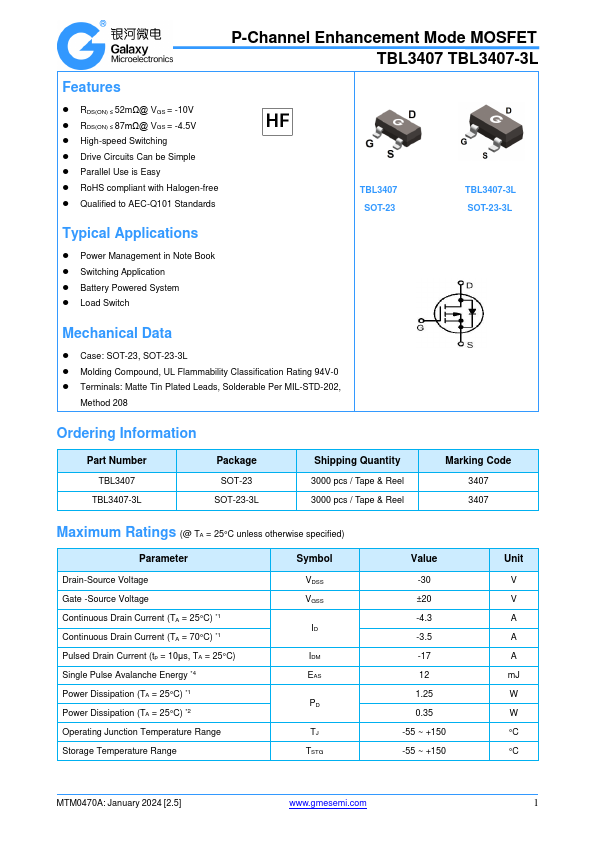

Datasheet preview – TBL3407

Datasheet Details

Part number TBL3407
Manufacturer GME
File Size 614.90 KB
Description P-Channel Enhancement Mode MOSFET
Datasheet download datasheet TBL3407 Datasheet

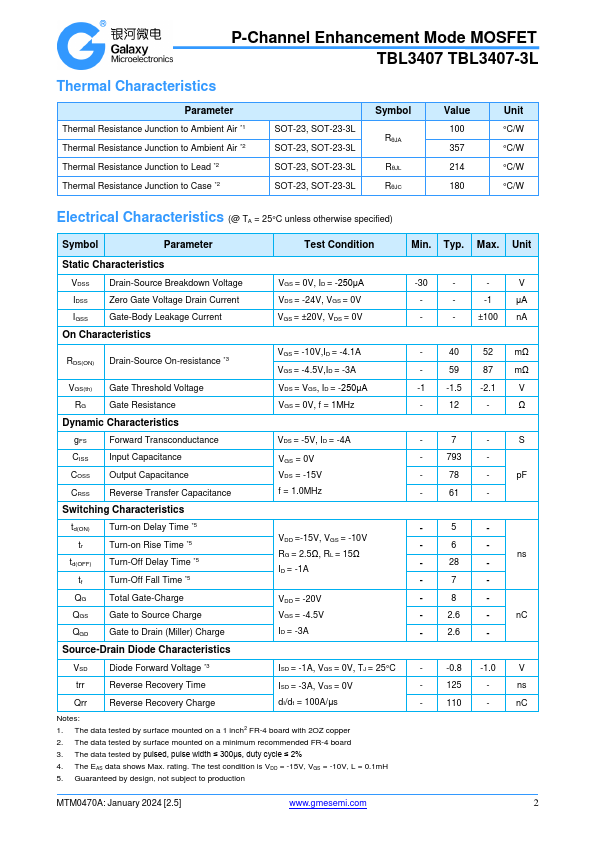

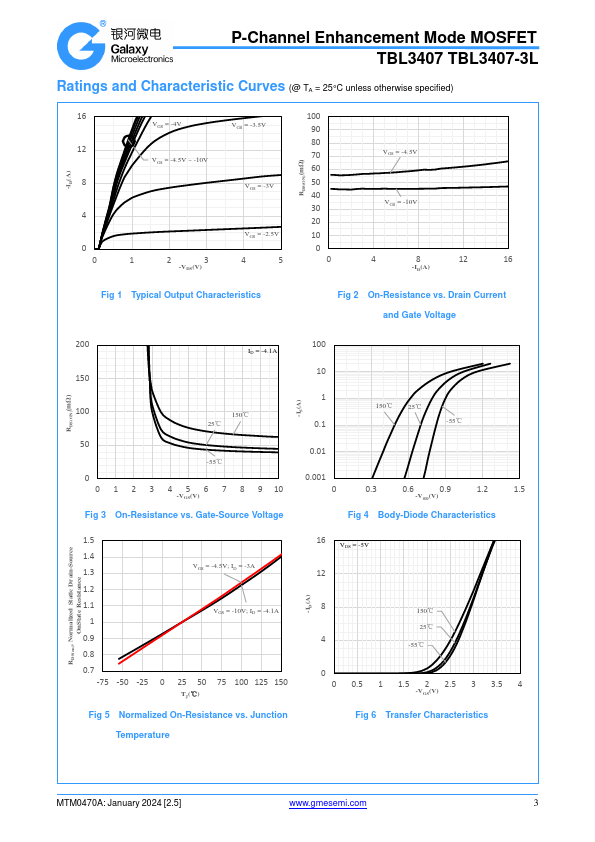

Additional preview pages of the TBL3407 datasheet.

📁 Similar Datasheet

  • TBL300N10D - N-Channel Enhancement MOSFET (Galaxy Microelectronics)
  • TBL005 - SINGLE-PHASE SILICON BRIDGE RECTIFIER (Dc Components)
  • TBL01 - SINGLE-PHASE SILICON BRIDGE RECTIFIER (Dc Components)
  • TBL02 - SINGLE-PHASE SILICON BRIDGE RECTIFIER (Dc Components)
  • TBL04 - SINGLE-PHASE SILICON BRIDGE RECTIFIER (Dc Components)
  • TBL06 - SINGLE-PHASE SILICON BRIDGE RECTIFIER (Dc Components)
  • TBL08 - SINGLE-PHASE SILICON BRIDGE RECTIFIER (Dc Components)
  • TBL10 - SINGLE-PHASE SILICON BRIDGE RECTIFIER (Dc Components)
  • TBL130P04-3DL8 - P-Channel Enhancement Mode MOSFET (Galaxy Microelectronics)
  • TBL130P04-S8 - P-Channel Enhancement Mode MOSFET (Galaxy Microelectronics)
Other Datasheets by GME

Full PDF Text Transcription

Click to expand full text
P-Channel Enhancement Mode MOSFET TBL3407 TBL3407-3L Features  RDS(ON) ≤ 52mΩ@ VGS = -10V  RDS(ON) ≤ 87mΩ@ VGS = -4.
