TBL02N06C - N-Channel Enhancement Mode MOSFET

Features

  • Low On-Resistance.
  • Low threshold.
  • Fast switching speed.
  • Low gate drive.
  • Halogen free.
  • Qualified to AEC-Q101 standards for high reliability Typical.

📥 Download Datasheet

📁 Similar Datasheet

  • TBL02 - SINGLE-PHASE SILICON BRIDGE RECTIFIER (Dc Components)
  • TBL005 - SINGLE-PHASE SILICON BRIDGE RECTIFIER (Dc Components)
  • TBL01 - SINGLE-PHASE SILICON BRIDGE RECTIFIER (Dc Components)
  • TBL04 - SINGLE-PHASE SILICON BRIDGE RECTIFIER (Dc Components)
  • TBL06 - SINGLE-PHASE SILICON BRIDGE RECTIFIER (Dc Components)
  • TBL08 - SINGLE-PHASE SILICON BRIDGE RECTIFIER (Dc Components)
  • TBL10 - SINGLE-PHASE SILICON BRIDGE RECTIFIER (Dc Components)
  • TBL130P04-3DL8 - P-Channel Enhancement Mode MOSFET (Galaxy Microelectronics)
  • TBL130P04-S8 - P-Channel Enhancement Mode MOSFET (Galaxy Microelectronics)
  • TBL170N10TD - N-Channel Enhancement Mode MOSFET (Galaxy Microelectronics)
Other Datasheets by GME

Full PDF Text Transcription

Click to expand full text

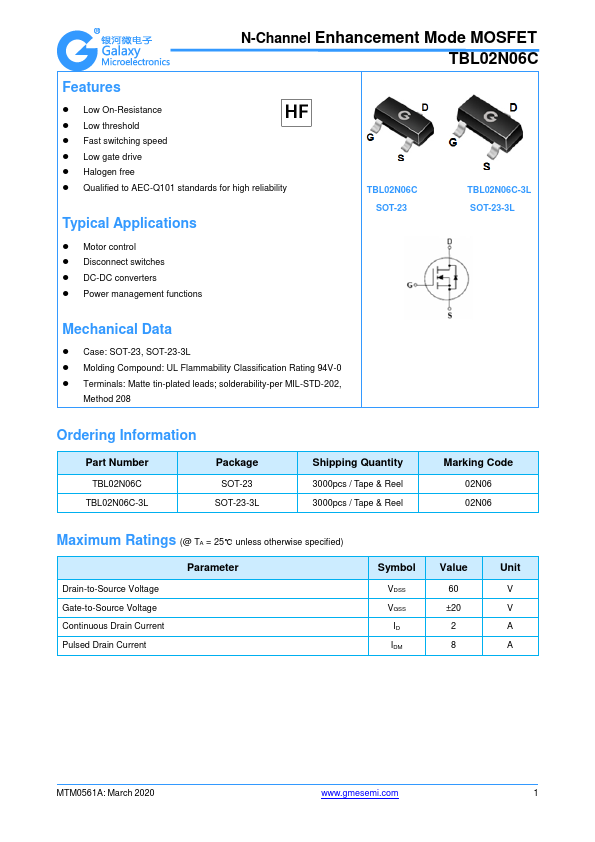

N-Channel Enhancement Mode MOSFET TBL02N06C Features  Low On-Resistance  Low threshold  Fast switching speed  Low gate drive  Halogen free  Qualified to AEC-Q101 standards for high reliability Typical Applications  Motor control  Disconnect switches  DC-DC converters  Power management functions TBL02N06C SOT-23 TBL02N06C-3L SOT-23-3L Mechanical Data  Case: SOT-23, SOT-23-3L  Molding Compound: UL Flammability Classification Rating 94V-0  Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 208 Ordering Information Part Number TBL02N06C TBL02N06C-3L Package SOT-23 SOT-23-3L Shipping Quantity 3000pcs / Tape & Reel 3000pcs / Tape & Reel Marking Code 02N06 02N06 Maximum Ratings (@ TA = 25℃ unless otherwise specified) Drain-to-Source Voltage Gate-to-So
