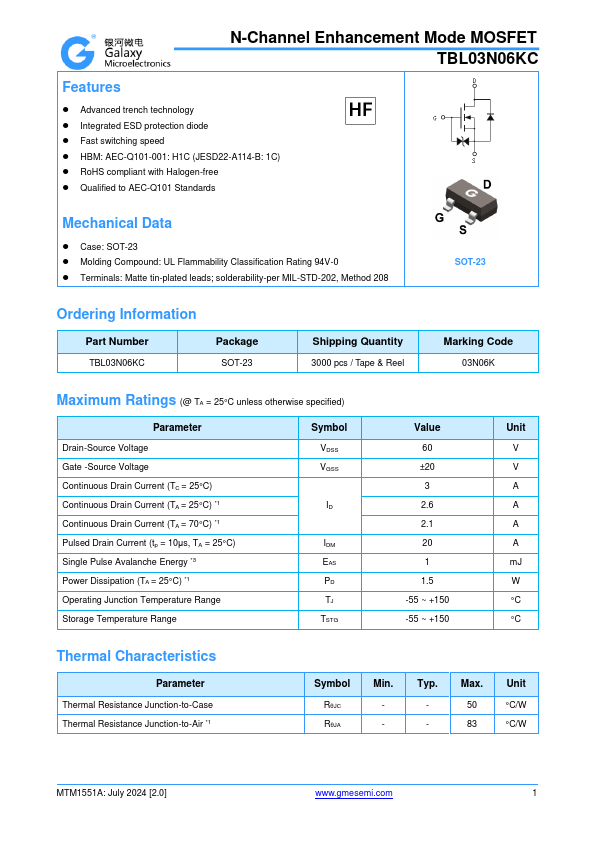

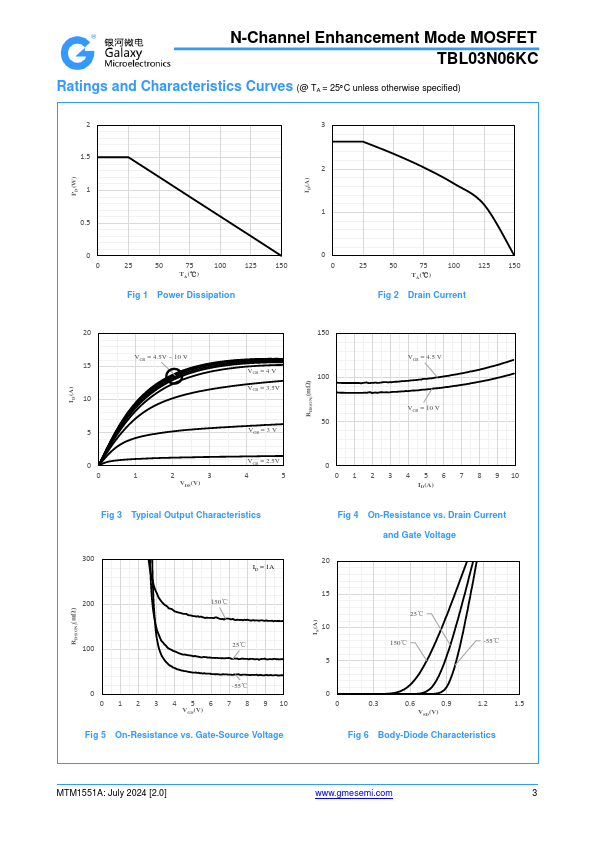

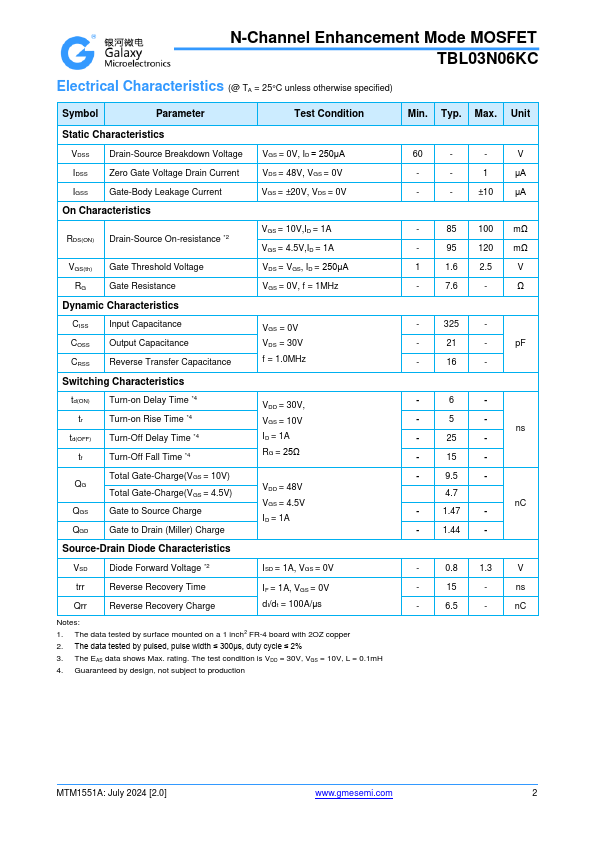

TBL03N06KC - N-Channel Enhancement Mode MOSFET

Key Features

  • Advanced trench technology.
  • Integrated ESD protection diode.
  • Fast switching speed.
  • HBM: AEC-Q101-001: H1C (JESD22-A114-B: 1C).
  • RoHS compliant with Halogen-free.
  • Qualified to AEC-Q101 Standards Mechanical Data.
  • Case: SOT-23.
  • Molding Compound: UL Flammability Classification Rating 94V-0.
  • Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 208 SOT-23 Ordering Information Part Number TBL03N06KC Package SOT-23 Shipping Quantity.
