TBL014N04T-5DL8 - N-Channel Enhancement Mode MOSFET

Key Features

  • Ultra-low on-resistance and gate-charge.
  • Advanced shielded-gate technology.
  • Halogen free.
  • Qualified to AEC-Q101 standards for high reliability Mechanical Data.
  • Case: PDFN5×6-8L.
  • Molding Compound: UL Flammability Classification Rating 94V-0.
  • Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 208 PDFN5×6-8L Ordering Information Part Number TBL014N04T-5DL8 Package PDFN5×6-8L Shipping Quantity 5000 pcs / Tape & Reel Marking Code 014N04.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
TBL01 SINGLE-PHASE SILICON BRIDGE RECTIFIER Dc Components
TBL005 SINGLE-PHASE SILICON BRIDGE RECTIFIER Dc Components
TBL02 SINGLE-PHASE SILICON BRIDGE RECTIFIER Dc Components
TBL04 SINGLE-PHASE SILICON BRIDGE RECTIFIER Dc Components
TBL06 SINGLE-PHASE SILICON BRIDGE RECTIFIER Dc Components

Other Datasheets by Galaxy Microelectronics

Part Number Description
TBL02N06C N-Channel Enhancement Mode MOSFET
TBL03N06KC N-Channel Enhancement Mode MOSFET
TBL050N10T-5DL8 N-Channel Enhancement Mode MOSFET
TBL250P06-3DL8 P-Channel Enhancement Mode MOSFET
TBL3407 P-Channel Enhancement Mode MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

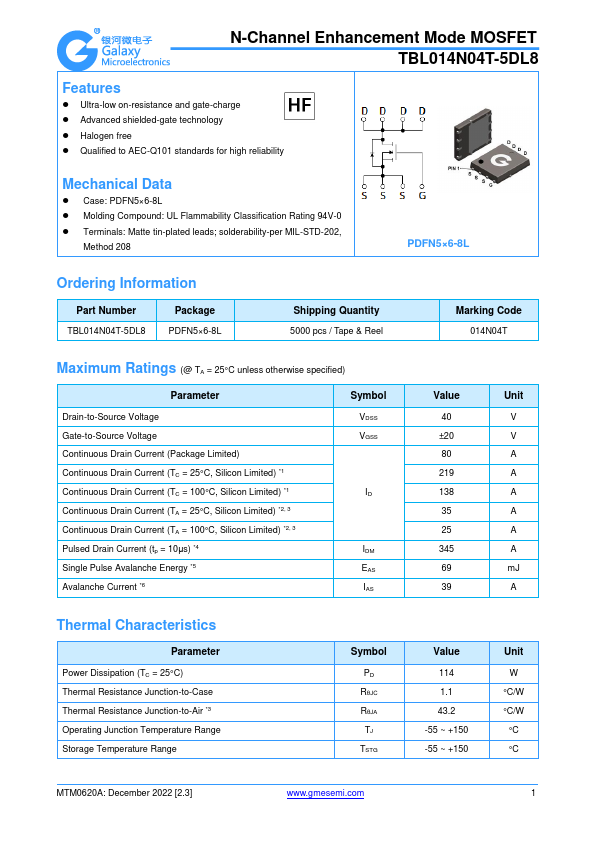

N-Channel Enhancement Mode MOSFET TBL014N04T-5DL8 Features  Ultra-low on-resistance and gate-charge  Advanced shielded-gate technology  Halogen free  Qualified to AEC-Q101 standards for high reliability Mechanical Data  Case: PDFN5×6-8L  Molding Compound: UL Flammability Classification Rating 94V-0  Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 208 PDFN5×6-8L Ordering Information Part Number TBL014N04T-5DL8 Package PDFN5×6-8L Shipping Quantity 5000 pcs / Tape & Reel Marking Code 014N04T Maximum Ratings (@ TA = 25°C unless otherwise specified) Parameter Drain-to-Source Voltage Gate-to-Source Voltage Continuous Drain Current (Package Limited) Continuous Drain Current (TC = 25°C, Silicon Limited) *1 Continuous Drain Current (TC = 100°C, Silicon Limit
