TBL500N06-3DL8 - N-Channel Enhancement Mode MOSFET

Features

  • Advanced trench technology.
  • Low RDS(on).
  • Fast switching speed.
  • HBM: AEC-Q101-001: H1B (JESD22-A114-B: 1B).
  • RoHS compliant with Halogen-free.
  • Qualified to AEC-Q101 Standards Mechanical Data.
  • Case: PDFN3×3-8L.
  • Molding Compound: UL Flammability Classification Rating 94V-0.
  • Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 208 PDFN3×3-8L Ordering Information Part Number TBL500N06-3DL8 Package PDFN3×3-8L Shipping Quantity 5000.

📥 Download Datasheet

📁 Similar Datasheet

  • TBL005 - SINGLE-PHASE SILICON BRIDGE RECTIFIER (Dc Components)
  • TBL01 - SINGLE-PHASE SILICON BRIDGE RECTIFIER (Dc Components)
  • TBL02 - SINGLE-PHASE SILICON BRIDGE RECTIFIER (Dc Components)
  • TBL04 - SINGLE-PHASE SILICON BRIDGE RECTIFIER (Dc Components)
  • TBL06 - SINGLE-PHASE SILICON BRIDGE RECTIFIER (Dc Components)
  • TBL08 - SINGLE-PHASE SILICON BRIDGE RECTIFIER (Dc Components)
  • TBL10 - SINGLE-PHASE SILICON BRIDGE RECTIFIER (Dc Components)
  • TBL130P04-3DL8 - P-Channel Enhancement Mode MOSFET (Galaxy Microelectronics)
  • TBL130P04-S8 - P-Channel Enhancement Mode MOSFET (Galaxy Microelectronics)
  • TBL170N10TD - N-Channel Enhancement Mode MOSFET (Galaxy Microelectronics)
Other Datasheets by GME

Full PDF Text Transcription

Click to expand full text

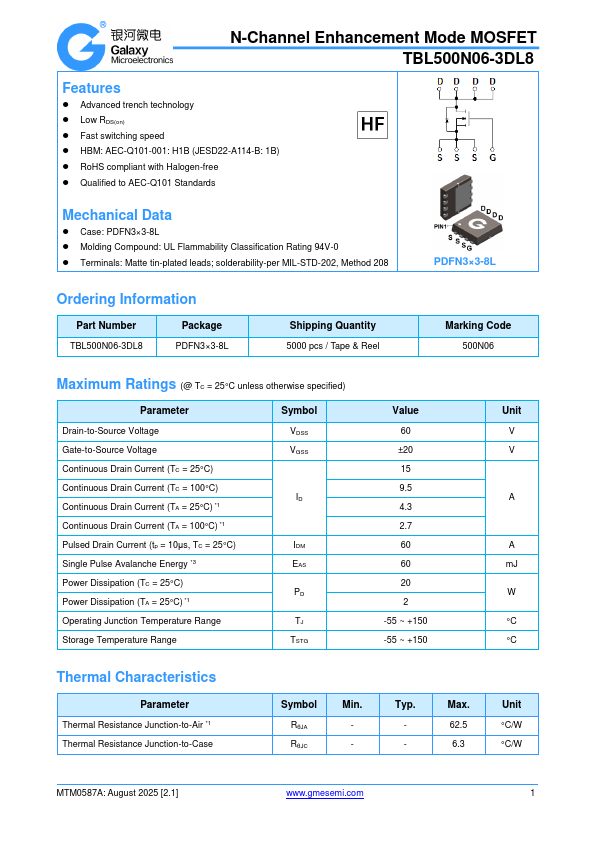

N-Channel Enhancement Mode MOSFET TBL500N06-3DL8 Features  Advanced trench technology  Low RDS(on)  Fast switching speed  HBM: AEC-Q101-001: H1B (JESD22-A114-B: 1B)  RoHS compliant with Halogen-free  Qualified to AEC-Q101 Standards Mechanical Data  Case: PDFN3×3-8L  Molding Compound: UL Flammability Classification Rating 94V-0  Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 208 PDFN3×3-8L Ordering Information Part Number TBL500N06-3DL8 Package PDFN3×3-8L Shipping Quantity 5000 pcs / Tape & Reel Marking Code 500N06 Maximum Ratings (@ TC = 25°C unless otherwise specified) Parameter Drain-to-Source Voltage Gate-to-Source Voltage Continuous Drain Current (TC = 25°C) Continuous Drain Current (TC = 100°C) Continuous Drain Current (TA = 25°C) *1 Continu
