MMBT3904 Overview

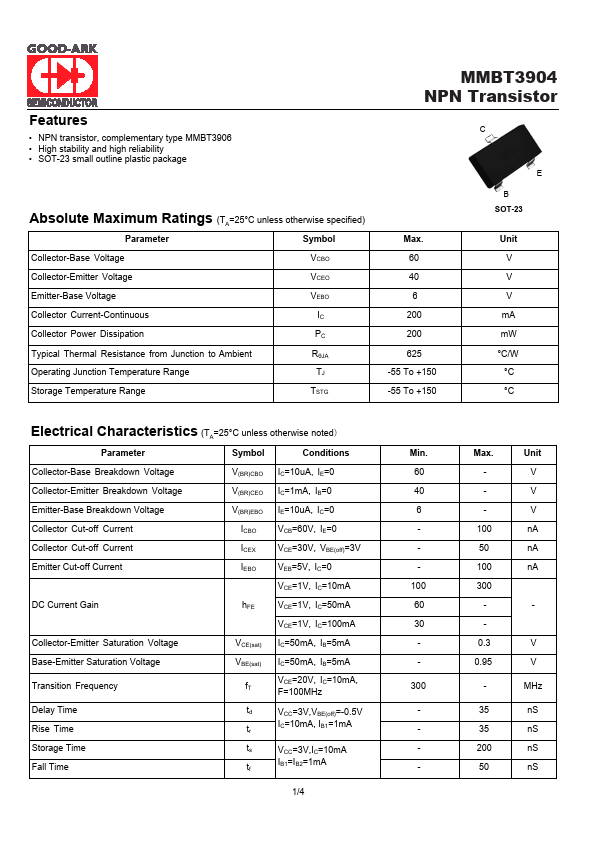

Features NPN transistor, plementary type MMBT3906 High stability and high reliability SOT-23 small outline plastic package Ratings (TA=25°C unless otherwise specified) Parameter Symbol Collector-Base Voltage VCBO Collector-Emitter Voltage VCEO Emitter-Base Voltage VEBO Collector Current-Continuous IC Collector Power Dissipation PC Typical from Junction to Ambient RθJA Operating Junction Temperature Range TJ Storage...
MMBT3904 Key Features
- NPN transistor, plementary type MMBT3906
- High stability and high reliability
- SOT-23 small outline plastic package
