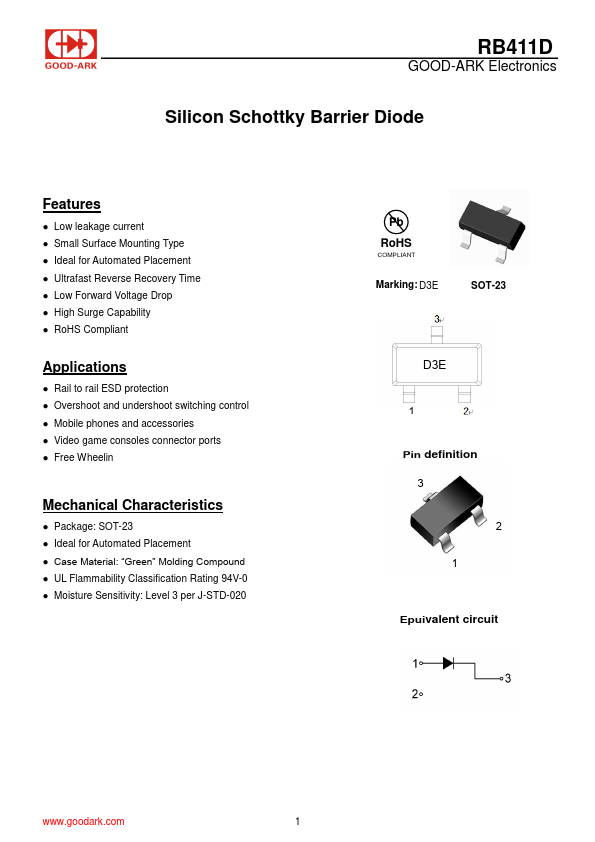

Good-Ark Semiconductor RB411D
The information described here may contain technical inaccuracies or typographical errors. by various means, including our website home page.| Part No. | RB411D |
|---|---|
| Datasheet | RB411D Download |
| Manufacturer |  Good-Ark Semiconductor |
| Description | Silicon Schottky Barrier Diode |
| Buy | Stock & Price |
FEATURES
● Low leakage current● Small Surface Mounting Type
● Ideal for Automated Placement
● Ultrafast Reverse Recovery Time
● Low Forward Voltage Drop
● High Surge Capability
● RoHS Compliant
APPLICATIONS
● Rail to rail ESD protection● Overshoot and undershoot switching control
● Mobile phones and accessories
● Video game consoles connector ports
● Free Wheelin Mechanical Characteristics
● Package: SOT-23
● Ideal for Automated Placement
● Case Material: “Green” Molding Compound
● UL Flammability Classification Rating 94V-0
● Moisture Sensitivity: Level 3 per J-STD-020 Pb RoHS COMPLIANT Marking: D3E SOT-23 D3E 1 Pin definition 3 2 1 Epuivalent circuit 1 Doc.No.644071 RB411D GOOD-ARK Electronics

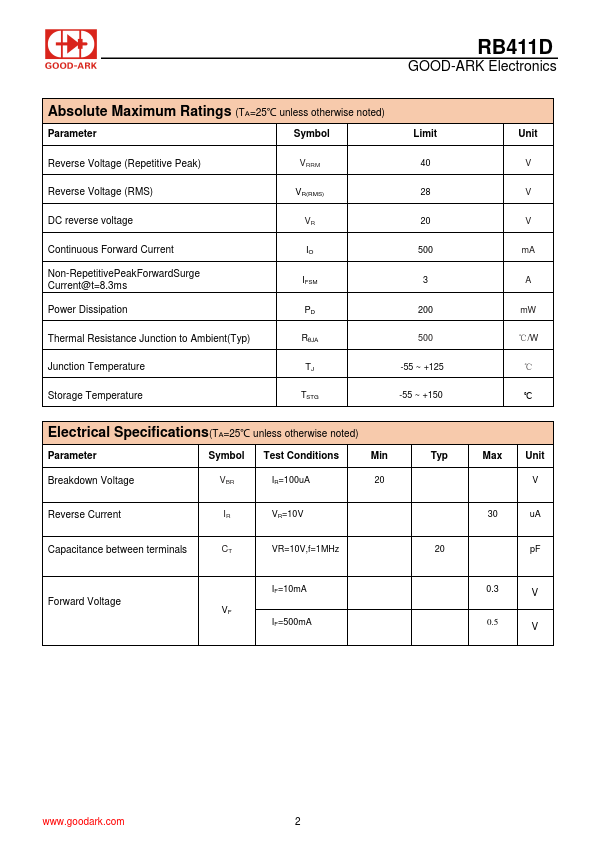

ABSOLUTE MAXIMUM RATINGS
(TA=25℃ unless otherwise noted) Parameter Symbol Limit Reverse Voltage (Repetitive Peak) VRRM 40 Reverse Voltage (RMS) VR(RMS) 28 DC reverse voltage VR 20 Continuous Forward Current IO 500 Non-RepetitivePeakForwardSurge Current@t=8.3ms IFSM 3 Power Dissipation PD 200...
