IRF541 - N-Channel Power MOSFET

Download the IRF541 datasheet PDF. This datasheet also covers the IRF540 variant, as both devices belong to the same n-channel power mosfet family and are provided as variant models within a single manufacturer datasheet.

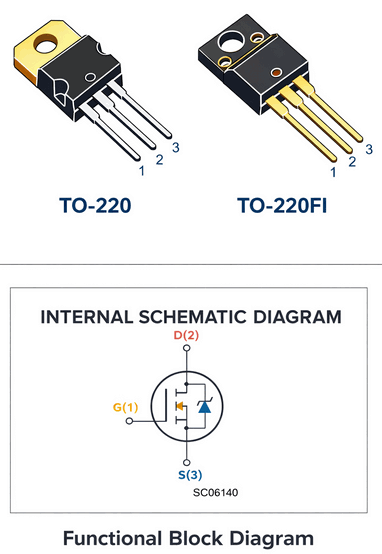

General Description

These are N-Channel enhancement mode silicon gate power field eff ect tr ansistors.

The y are adv anced po wer MOSFETs designed, tested, and guaranteed to withstand a specified level of energy in the breakdo wn avalanche mode of operation.

Key Features

  • 25A and 28A, 80V and 100V.
  • rDS(ON) = 0.077Ω and 0.100Ω.
  • Single Pulse Avalanche Energy Rated.
  • Nanosecond Switching Speeds.
  • Linear Transfer Characteristics.
  • High Input Impedance.
  • Related Literature - TB334 “Guidelines for Soldering Surface Mount Components to PC Boards” Ordering Information PART NUMBER IRF540 IRF541 IRF542 IRF543 RF1S540 RF1S540SM.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (IRF540-Harris.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number IRF541
Manufacturer Harris
File Size 142.43 KB
Description N-Channel Power MOSFET
Datasheet download datasheet IRF541 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
IRF541 N-Channel Mosfet Transistor Inchange Semiconductor
IRF541 N-Channel MOSFET STMicroelectronics
IRF541 N-Channel Power MOSFET Fairchild Semiconductor
IRF541FI N-Channel MOSFET STMicroelectronics
IRF540 Power MOSFET Vishay

Other Datasheets by Harris

Part Number Description
IRF540 N-Channel Power MOSFET
IRF542 N-Channel Power MOSFETs
IRF543 N-Channel Power MOSFETs
IRF140 N-Channel Power MOSFETs
IRF141 N-Channel Power MOSFETs

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text
Semiconductor IRF540, IRF541, IRF542, IRF543, RF1S540, RF1S540SM 25A and 28A, 80V and 100V, 0.077 and 0.100 Ohm, N-Channel Power MOSFETs Description These are N-Channel enhancement mode silicon gate power field eff ect tr ansistors. The y are adv anced po wer MOSFETs designed, tested, and guaranteed to withstand a specified level of energy in the breakdo wn avalanche mode of operation. All of these po wer MOSFETs are designed f or applications such as s witching regulators, switching convertors, motor dr ivers, relay drivers, and dr ivers for high po wer bipolar s witching tr ansistors requir ing high speed and lo w gate drive power. These types can be operated directly from integrated circuits. Formerly developmental type TA17421.
