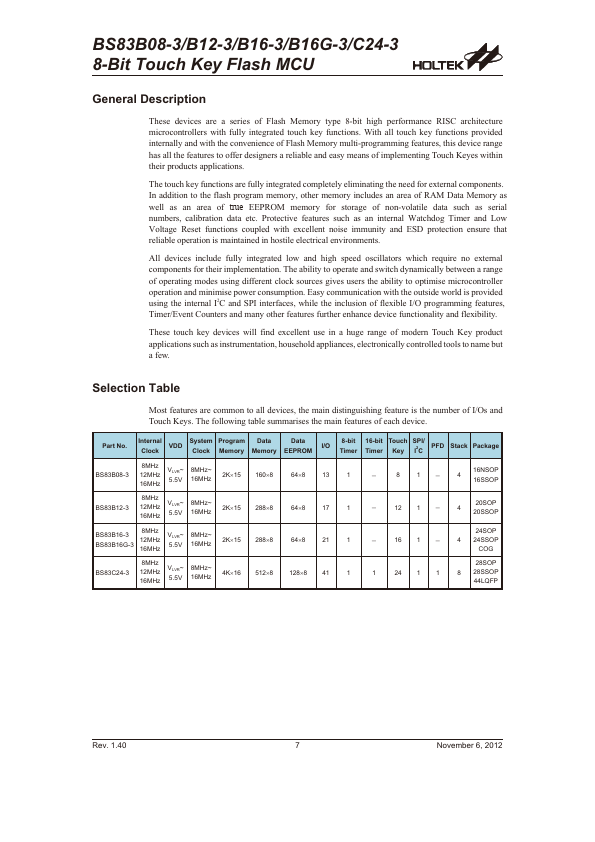

BS83B16-3 Overview
These devices are a series of Flash Memory type 8-bit high performance RISC architecture microcontrollers with fully integrated touch key functions. With all touch key functions provided internally and with the convenience of Flash Memory multi-programming.

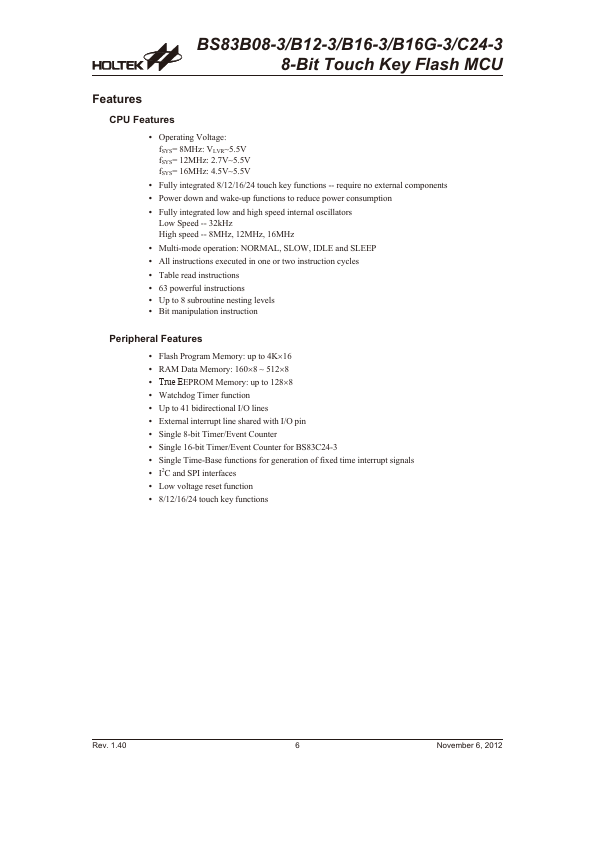

BS83B16-3 Key Features
- Operating Voltage: fSYS= 8MHz: VLVR~5.5V fSYS= 12MHz: 2.7V~5.5V fSYS= 16MHz: 4.5V~5.5V
- Fully integrated 8/12/16/24 touch key functions -- require no external ponents
- Power down and wake-up functions to reduce power consumption
- Fully integrated low and high speed internal oscillators
- Multi-mode operation: NORMAL, SLOW, IDLE and SLEEP
- All instructions executed in one or two instruction cycles
- Table read instructions
- 63 powerful instructions
- Up to 8 subroutine nesting levels
- Bit manipulation instruction
