BS83B16A-3

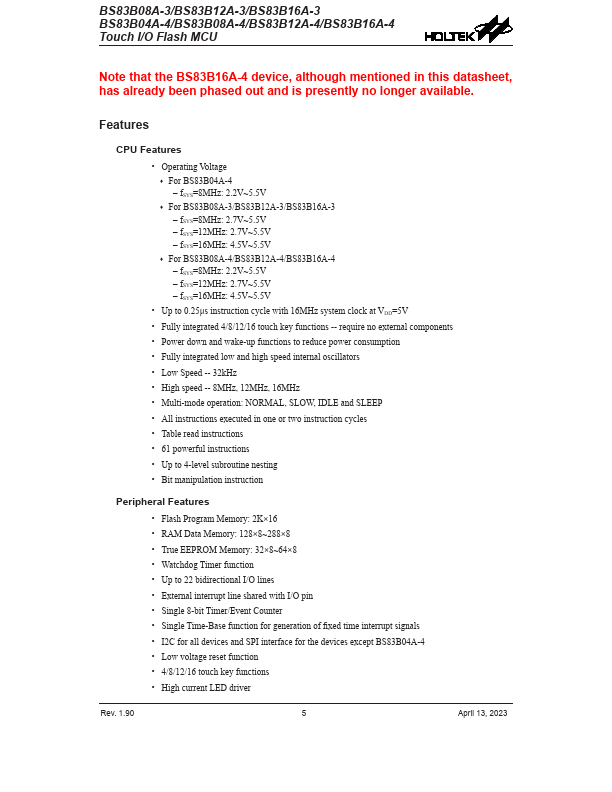

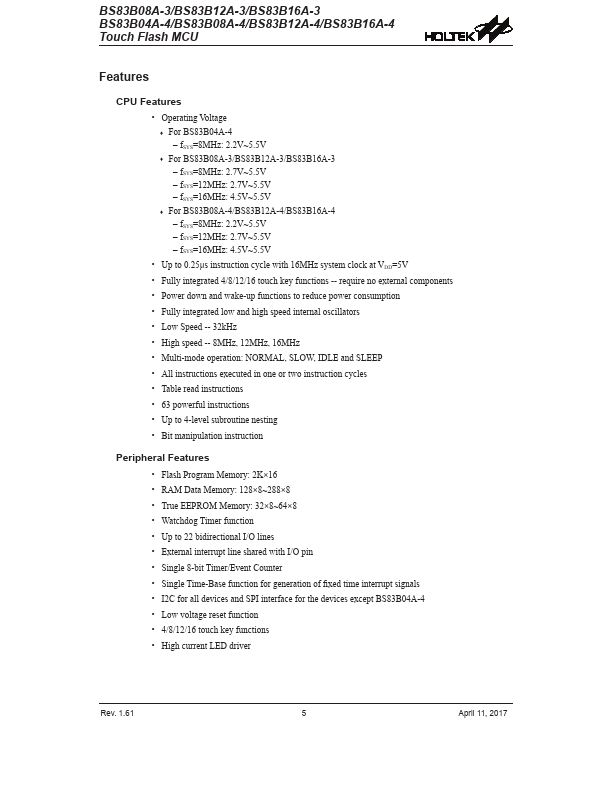

Overview
- Operating Voltage
- For BS83B04A-4 - fSYS=8MHz: 2.2V~5.5V
- For BS83B08A-3/BS83B12A-3/BS83B16A-3 - fSYS=8MHz: 2.7V~5.5V - fSYS=12MHz: 2.7V~5.5V - fSYS=16MHz: 4.5V~5.5V
- For BS83B08A-4/BS83B12A-4/BS83B16A-4 - fSYS=8MHz: 2.2V~5.5V - fSYS=12MHz: 2.7V~5.5V - fSYS=16MHz: 4.5V~5.5V
- Up to 0.25μs instruction cycle with 16MHz system clock at VDD=5V
- Fully integrated 4/8/12/16 touch key functions -- require no external components
- Power down and wake-up functions to reduce power consumption
- Fully integrated low and high speed internal oscillators
- Low Speed -- 32kHz
- High speed -- 8MHz, 12MHz, 16MHz
