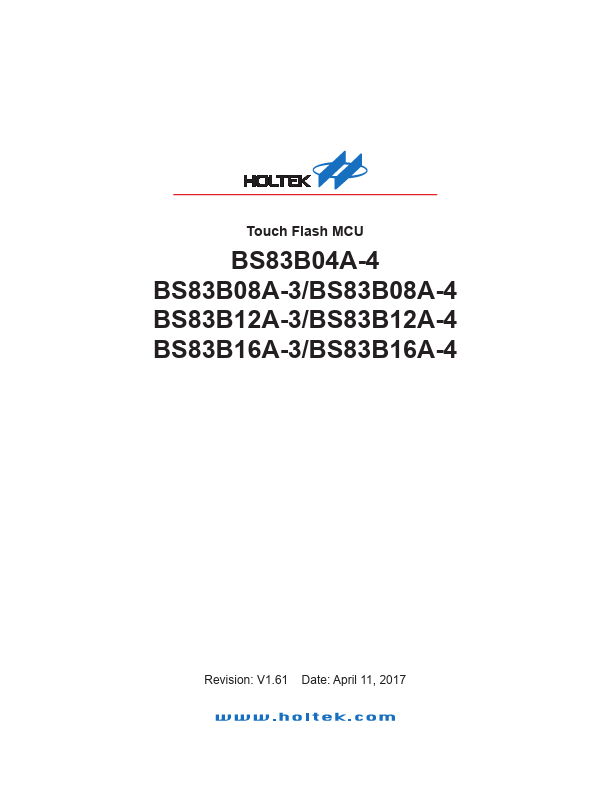

Datasheet Summary
Touch Flash MCU
BS83B04A-4 BS83B08A-3/BS83B08A-4 BS83B12A-3/BS83B12A-4 BS83B16A-3/BS83B16A-4
Revision: V1.61 Date: April 11, 2017
BS83B08A-3/BS83B12A-3/BS83B16A-3 BS83B04A-4/BS83B08A-4/BS83B12A-4/BS83B16A-4 Touch Flash MCU

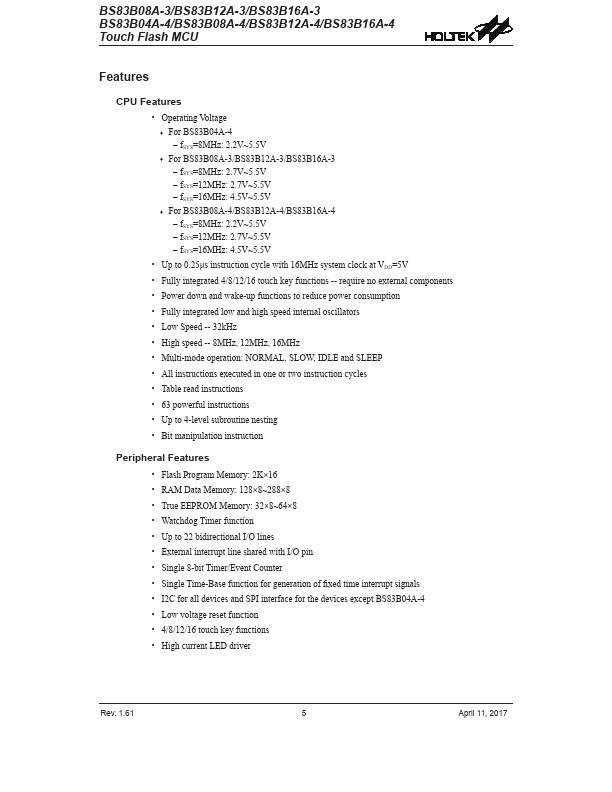

Features
CPU Features
- Operating Voltage
- - For BS83B04A-4
- - fSYS=8MHz: 2.2V~5.5V
- - For BS83B08A-3/BS83B12A-3/BS83B16A-3
- - fSYS=8MHz: 2.7V~5.5V
- - fSYS=12MHz: 2.7V~5.5V
- - fSYS=16MHz: 4.5V~5.5V
- - For BS83B08A-4/BS83B12A-4/BS83B16A-4
- - fSYS=8MHz: 2.2V~5.5V
- - fSYS=12MHz: 2.7V~5.5V
- - fSYS=16MHz: 4.5V~5.5V
- Up to 0.25μs instruction cycle with 16MHz system clock at VDD=5V
- Fully integrated 4/8/12/16 touch key functions -- require no external ponents
- Power down and...
