Datasheet Summary
Touch I/O Flash MCU
BS83B08C/BS83B12C/BS83B16C
Revision: V1.52 Date: February 21, 2025
BS83B08C/BS83B12C/BS83B16C Touch I/O Flash MCU

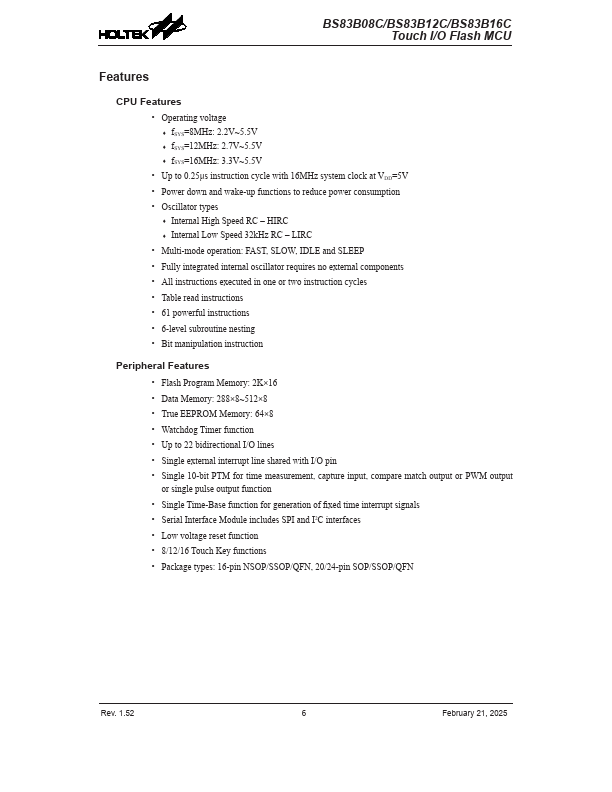

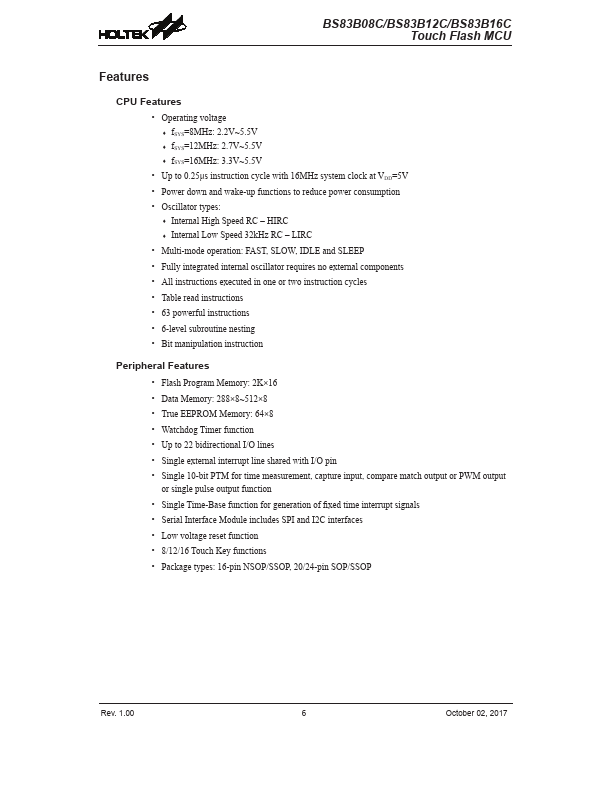

Features
CPU Features
- Operating voltage
- fSYS=8MHz: 2.2V~5.5V
- fSYS=12MHz: 2.7V~5.5V
- fSYS=16MHz: 3.3V~5.5V
- Up to 0.25μs instruction cycle with 16MHz system clock at VDD=5V
- Power down and wake-up functions to reduce power consumption
- Oscillator types
- Internal High Speed RC
- HIRC
- Internal Low Speed 32kHz RC
- LIRC
- Multi-mode operation: FAST, SLOW, IDLE and SLEEP
- Fully integrated internal oscillator requires no external ponents
- All instructions executed in one or two instruction cycles
- Table read instructions
- 61 powerful...
