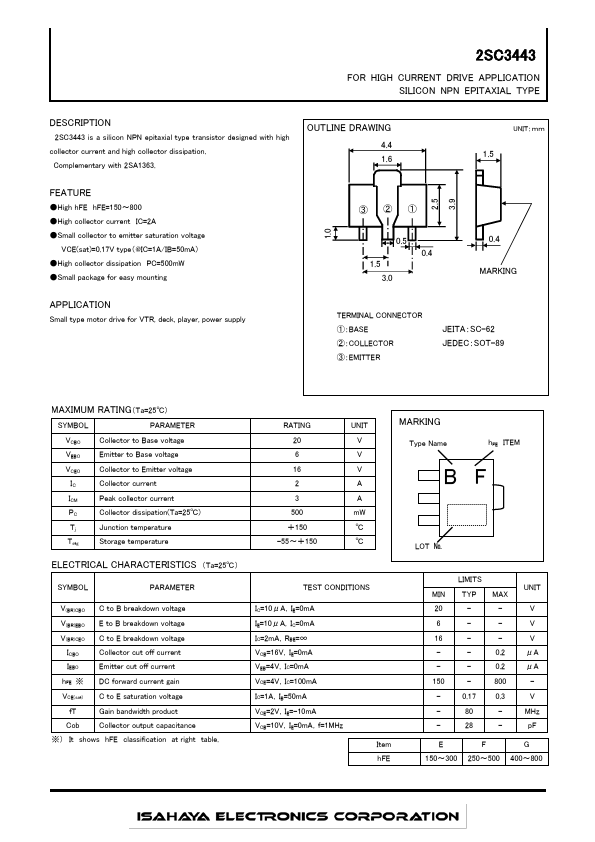

2SC3443
DESCRIPTION
2SC3443 is a silicon NPN epitaxial type transistor designed with high collector current and high collector dissipation. plementary with 2SA1363.
OUTLINE DRAWING
4.4 1.6
UNIT：ｍｍ
FEATURE
- High h FE h FE=150～800
- High collector current IC=2A
- Small collector to emitter saturation voltage
VCE(sat)=0.17V type（@IC=1A/IB=50m A）
- High collector dissipation PC=500m W
- Small package for easy mounting
1.0 2.5 3.9
③②①
0.5 0.4
1.5 3.0
0.4 MARKING
APPLICATION
Small type motor drive for VTR, deck, player, power supply
TERMINAL CONNECTOR ①：BASE ②：COLLECTOR ③：EMITTER
JEITA：SC-62 JEDEC：SOT-89
MAXIMUM RATING（Ta=25℃）
SYMBOL
PARAMETER
VCBO Collector to Base voltage
VEBO Emitter to Base voltage
VCEO Collector to Emitter voltage
Collector current
Peak collector current
Collector dissipation(Ta=25℃)
Tj
Junction temperature
Tstg
Storage temperature
ELECTRICAL CHARACTERISTICS （Ta=25℃）
SYMBOL...
