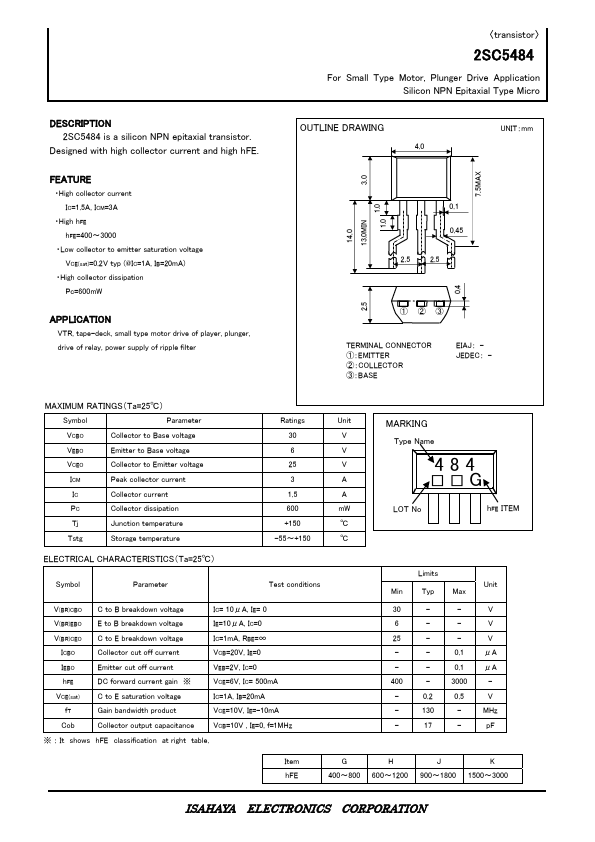

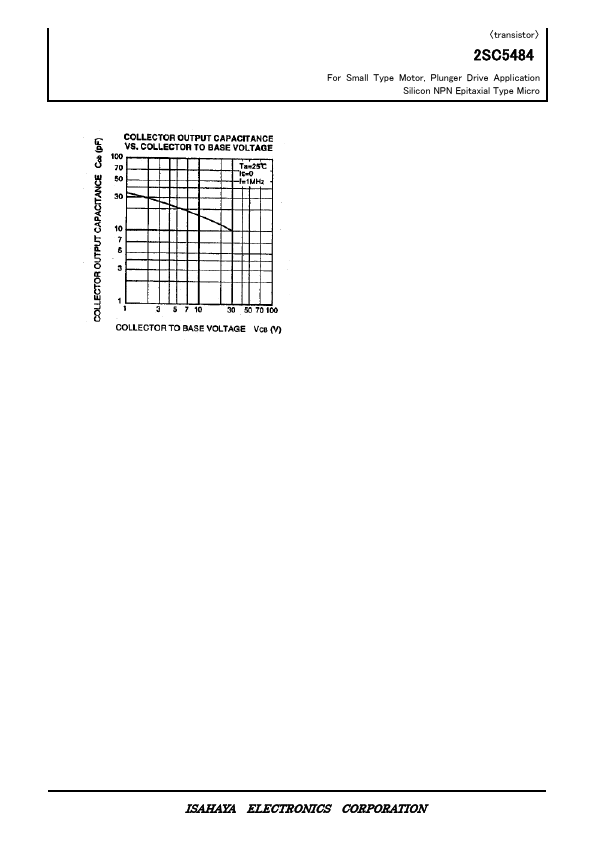

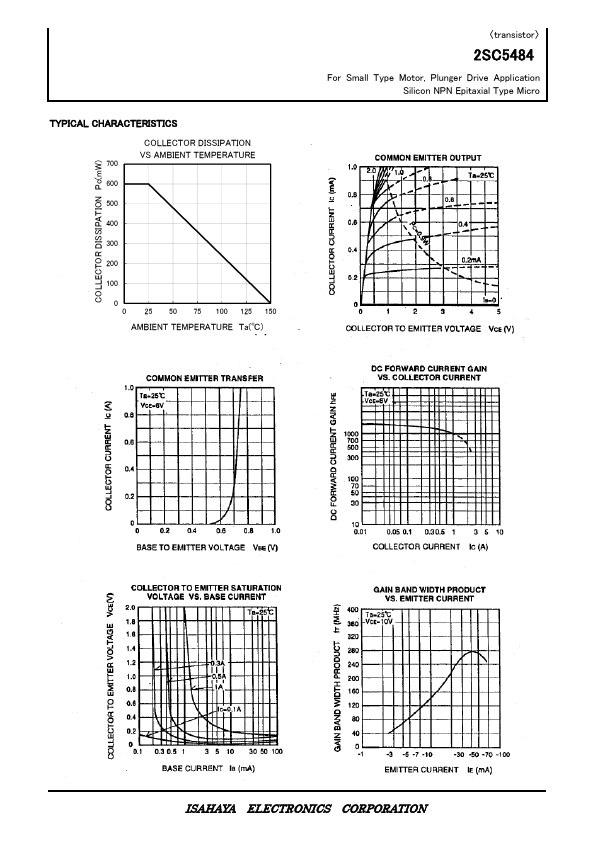

2SC5484
DESCRIPTION
2SC5484 is a silicon NPN epitaxial transistor.
Designed with high collector current and high h FE.
FEATURE
- High collector current IC=1.5A, ICM=3A
- High h FE h FE=400～3000
- Low collector to emitter saturation voltage VCE(sat)=0.2V typ (@IC=1A, IB=20m A)
- High collector dissipation Pc=600m W
APPLICATION
VTR, tape-deck, small type motor drive of player, plunger, drive of relay, power supply of ripple filter
OUTLINE DRAWING
UNIT：mm
0.4 7.5MAX
1.0 1.0
13.0MIN
0.1 0.45 2.5 2.5
①②③
TERMINAL CONNECTOR ①：EMITTER ②：COLLECTOR ③：BASE
EIAJ： JEDEC：
- MAXIMUM RATINGS（Ta=25℃）
Symbol
Parameter
VCBO
Collector to Base voltage
VEBO
Emitter to Base voltage
VCEO
Collector to Emitter voltage
Peak collector current
Collector current
Collector dissipation
Tj
Junction...
