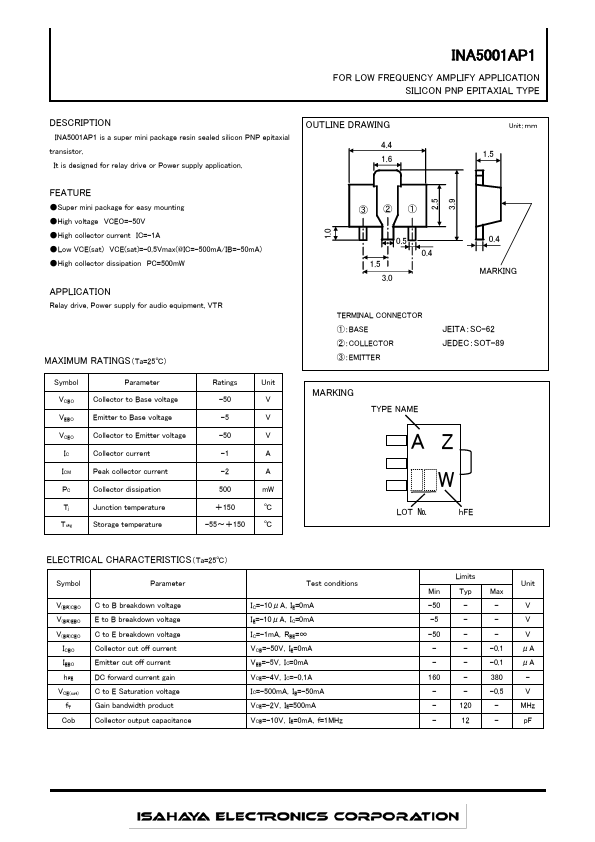

INA5001AP1
INA5001AP1 is SILICON PNP EPITAXIAL TYPE TRANSISTOR manufactured by Isahaya Electronics Corporation.
DESCRIPTION
INA5001AP1 is a super mini package resin sealed silicon PNP epitaxial transistor. It is designed for relay drive or Power supply application.
OUTLINE DRAWING
4.4 1.6
Unit：ｍｍ
FEATURE
- Super mini package for easy mounting
- High voltage VCEO=-50V
- High collector current IC=-1A
- Low VCE(sat) VCE(sat)=-0.5Vmax(@IC=-500m A/IB=-50m A)
- High collector dissipation PC=500m W
APPLICATION
Relay drive, Power supply for audio equipment, VTR
MAXIMUM RATINGS（Ta=25℃）
Symbol VCBO VEBO VCEO IC ICM PC Tj Tstg
Parameter Collector to Base voltage Emitter to Base voltage Collector to Emitter voltage Collector current Peak collector current Collector dissipation Junction temperature Storage temperature
Ratings
Unit
-50
-5
-50
-1
-2
500 m W
＋150
℃
-55～＋150 ℃
1.0 2.5 3.9
③②①
0.5 0.4
1.5 3.0
0.4 MARKING
TERMINAL CONNECTOR ①：BASE ②：COLLECTOR ③：EMITTER
JEITA：SC-62...
