2KK5011 - N-Channel MOSFET

Features

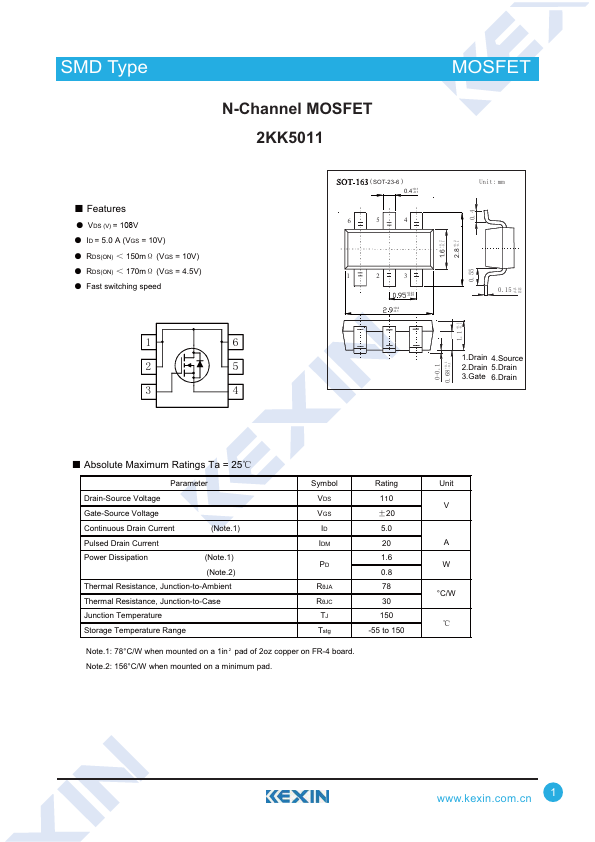

  • ƽ VDS (V) = 108V ƽ ID = 5.0 A (VGS = 10V) ƽ RDS(ON) ˘ 150m¡ (VGS = 10V) ƽ RDS(ON) ˘ 170m¡ (VGS = 4.5V) ƽ Fast switching speed 1 6 2 5 3 4 0-0.1 +0.1 0.68 -0.1 ( SOT-23-6 ) 0.4+0.1 -0.1 6 5 4 0.4 Unit: mm +0.2 1.6 -0.1 +0.2 2.8 -0.1 0.55 1 2 3 +0.01 -0.01 +0.2 -0.1 +0.1 1.1 -0.1 0.15 +0.02 -0.02 1.Drain 4.Source 2.Drain 5.Drain 3.Gate 6.Drain Ƶ Absolute Maximum Ratings Ta = 25ć Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current (Note.1) Pulsed.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2KK904 N-Channel Silicon Power MOS FET Fuji Semiconductors

Other Datasheets by Kexin Semiconductor

Part Number Description
2KK5010E N-Channel Enhancement MOSFET
2KK5012 N-Channel MOSFET
2KK5013 N-Channel Enhancement MOSFET
2KK5016 N-Channel MOSFET
2KK5018DFN N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

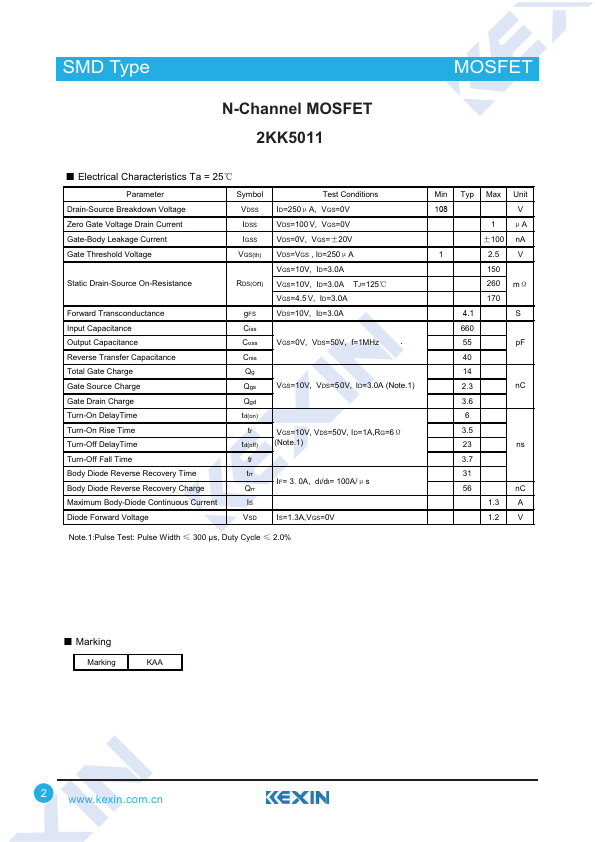

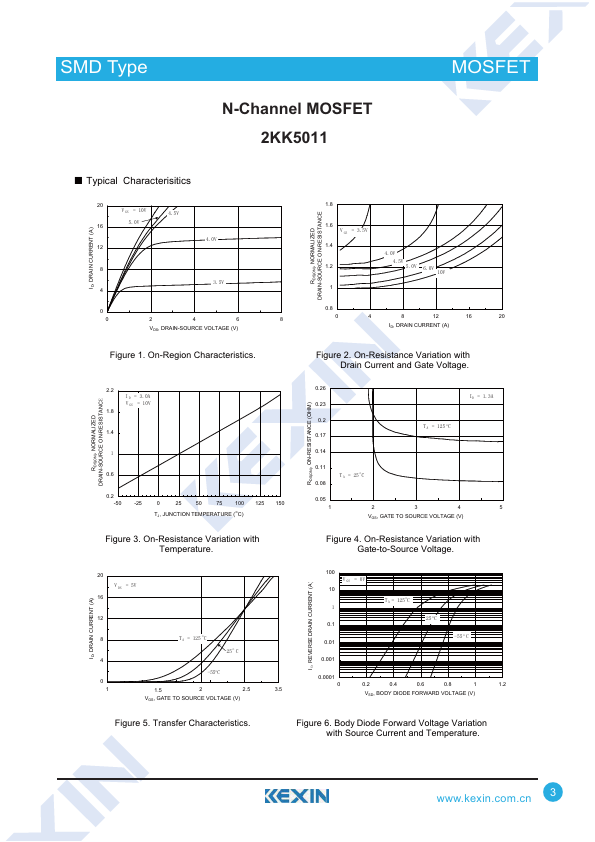

SMD Type N-Channel MOSFET 2KK5011 TraMnOsiSsFtoErsT Ƶ Features ƽ VDS (V) = 108V ƽ ID = 5.0 A (VGS = 10V) ƽ RDS(ON) ˘ 150m¡ (VGS = 10V) ƽ RDS(ON) ˘ 170m¡ (VGS = 4.5V) ƽ Fast switching speed 1 6 2 5 3 4 0-0.1 +0.1 0.68 -0.1 ( SOT-23-6 ) 0.4+0.1 -0.1 6 5 4 0.4 Unit: mm +0.2 1.6 -0.1 +0.2 2.8 -0.1 0.55 1 2 3 +0.01 -0.01 +0.2 -0.1 +0.1 1.1 -0.1 0.15 +0.02 -0.02 1.Drain 4.Source 2.Drain 5.Drain 3.Gate 6.Drain Ƶ Absolute Maximum Ratings Ta = 25ć Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current (Note.1) Pulsed Drain Current Power Dissipation (Note.1) (Note.
