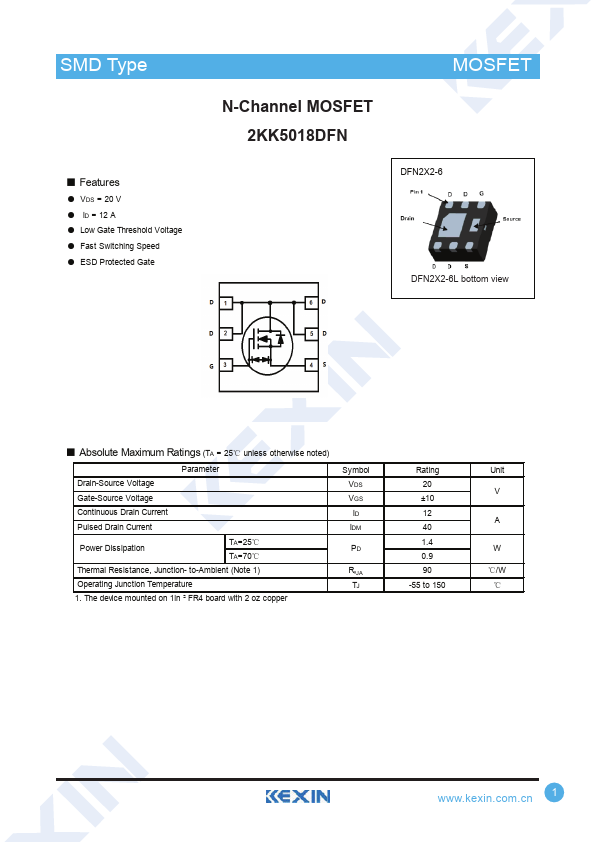

SMD Type
■ Features
● VDS = 20 V ● ID = 12 A ● Low Gate Threshold Voltage ● Fast Switching Speed ● ESD Protected Gate
MOSFET
N-Channel MOSFET 2KK5018DFN
DFN2X2-6
DFN2X2-6L bottom view
■ Absolute Maximum Ratings (TA = 25℃ unless otherwise noted)
Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current
Parameter
Power Dissipation
TA=25℃ TA=70℃
Thermal Resistance, Junction- to-Ambient (Note 1)
Operating Junction Temperature
1. The device mounted on 1in ² FR4 board with 2 oz copper
Symbol VDS VGS ID IDM
PD
RᶿJA TJ
Rating 20 ±10 12 40 1.4 0.9 90
-55 to 150
Unit V
A
W ℃/W
℃

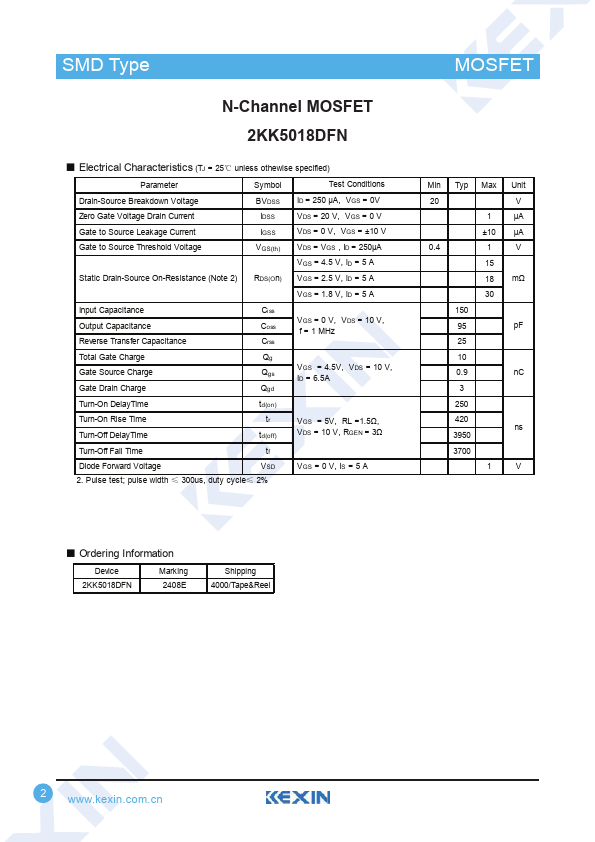

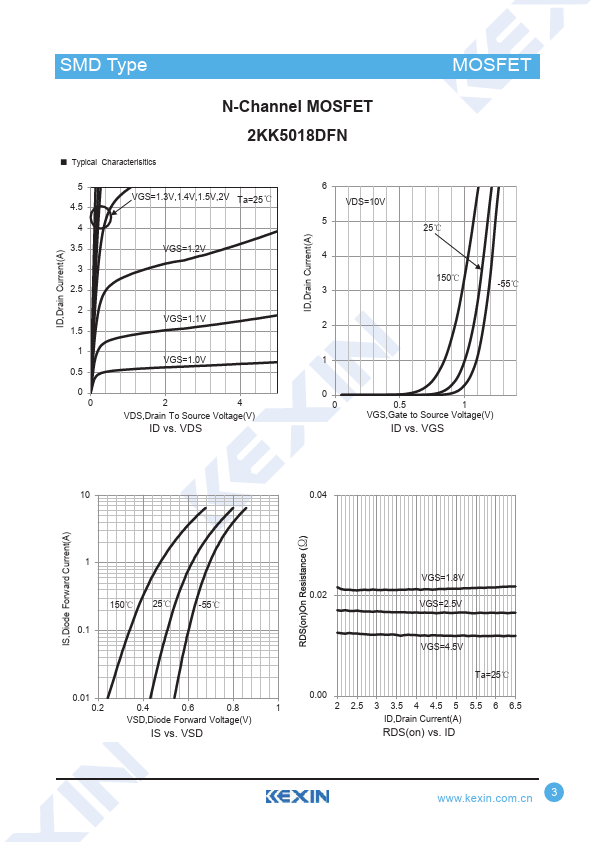

www.kexin.com.
