2KK5095 - N-Channel MOSFET

Key Features

  • VDS (V) = 100V ID = 10.8 A (VGS = 10V) RDS(ON) 130m (VGS = 10V) RDS(ON) 150m (VGS = 4.5V) TO-252 23 1 D G S 1. Gate (G) 2. Drain (D) 3. Source (S) Absolute Maximum Ratings Ta = 25 Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current Tc=25 Tc=70 Single Pulse Avalanche Energy (Note.1) Power Dissipation Thermal Resistance. Junction- to-Ambient Tc=25 Tc=70 Thermal Resistance. Junction- to-Case Junction Temperature Storage Temperature Range S.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2KK904 N-Channel Silicon Power MOS FET Fuji Semiconductors

Other Datasheets by Kexin Semiconductor

Part Number Description
2KK5092 N-Channel MOSFET
2KK5093 N-Channel MOSFET
2KK5096DFN N-Channel MOSFET
2KK5097DFN N-Channel MOSFET
2KK5098DFN N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

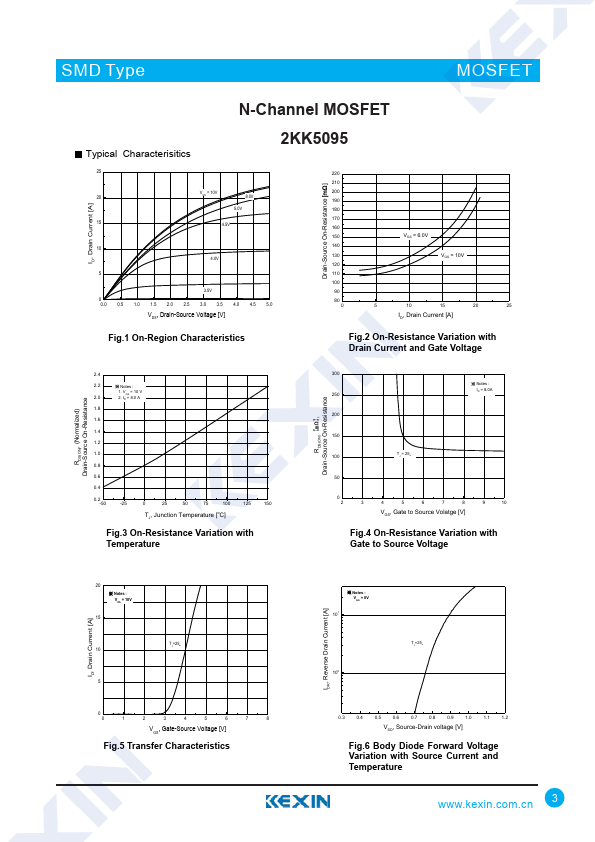

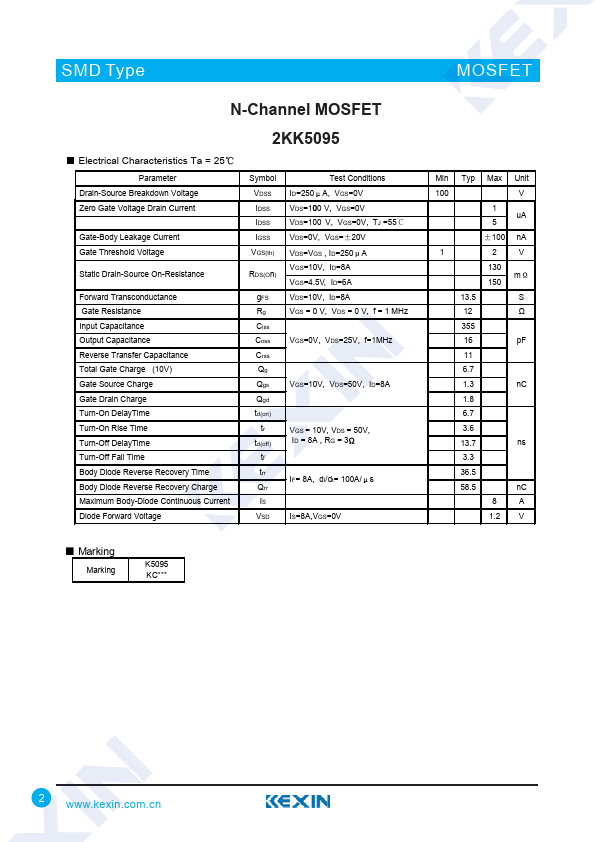

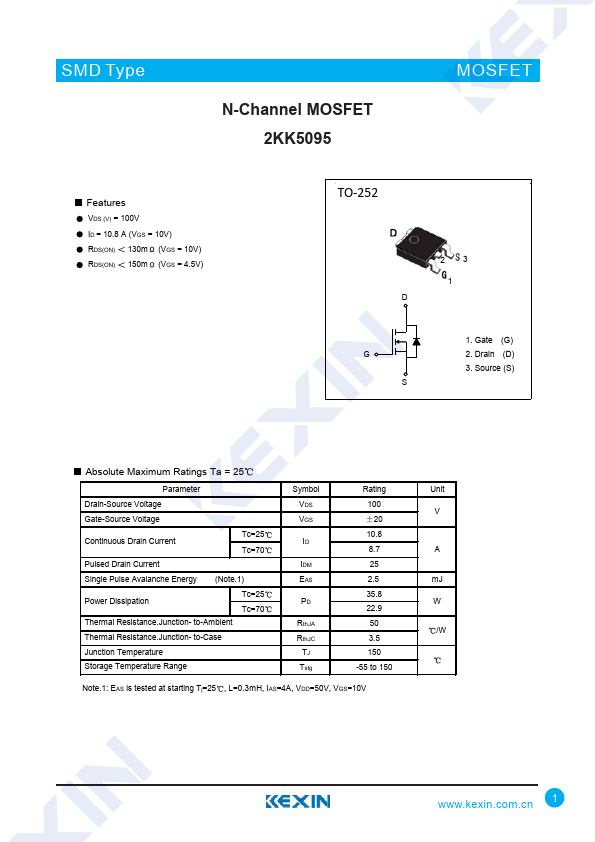

SMD Type N-Channel MOSFET 2KK5095 MOSFET Features VDS (V) = 100V ID = 10.8 A (VGS = 10V) RDS(ON) 130m (VGS = 10V) RDS(ON) 150m (VGS = 4.5V) TO-252 23 1 D G S 1. Gate (G) 2. Drain (D) 3. Source (S) Absolute Maximum Ratings Ta = 25 Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current Tc=25 Tc=70 Single Pulse Avalanche Energy (Note.1) Power Dissipation Thermal Resistance.Junction- to-Ambient Tc=25 Tc=70 Thermal Resistance.Junction- to-Case Junction Temperature Storage Temperature Range Symbol VDS VGS ID IDM EAS PD RthJA RthJC TJ Tstg Rating 100 ±20 10.8 8.7 25 2.5 35.8 22.9 50 3.5 150 -55 to 150 Unit V A mJ W /W Note.1: EAS is tested at starting Tj=25 , L=0.3mH, IAS=4A, VDD=50V, VGS=10V www.kexin.com.
