2KK5097DFN - N-Channel MOSFET

Key Features

  • s.
  • VDS (V) = 150V.
  • ID = 17 A.
  • RDS(ON) = 54mΩ (VGS = 10V).
  • RDS(ON) = 66mΩ (VGS = 6V) S S S G PDFN3.3x3.3-8 Top View Pin 1 Top View 1 8 D 2 7 3 6 4 5 D D D Bottom View.
  • Absolute Maximum Ratings (TA = 25℃ unless otherwise noted) Parameter Symbol Rating Unit Drain-Source Voltage Gate-Source Voltage VDS 150 V VGS ±20 Continuous Drain Current TC=25℃ 17 ID TC=100℃ 11 Pulsed Drain Current (Note 3) Continuous Drain Current IDM 30 A TA=25℃ 5.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2KK904 N-Channel Silicon Power MOS FET Fuji Semiconductors

Other Datasheets by Kexin Semiconductor

Part Number Description
2KK5092 N-Channel MOSFET
2KK5093 N-Channel MOSFET
2KK5095 N-Channel MOSFET
2KK5096DFN N-Channel MOSFET
2KK5098DFN N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

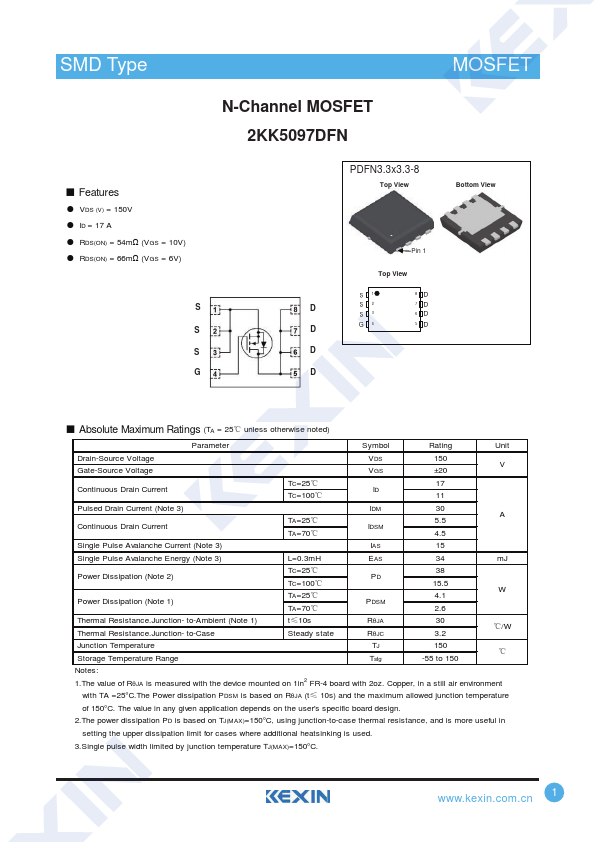

SMD Type MOSFET N-Channel MOSFET 2KK5097DFN ■ Features ● VDS (V) = 150V ● ID = 17 A ● RDS(ON) = 54mΩ (VGS = 10V) ● RDS(ON) = 66mΩ (VGS = 6V) S S S G PDFN3.3x3.3-8 Top View Pin 1 Top View 1 8 D 2 7 3 6 4 5 D D D Bottom View ■ Absolute Maximum Ratings (TA = 25℃ unless otherwise noted) Parameter Symbol Rating Unit Drain-Source Voltage Gate-Source Voltage VDS 150 V VGS ±20 Continuous Drain Current TC=25℃ 17 ID TC=100℃ 11 Pulsed Drain Current (Note 3) Continuous Drain Current IDM 30 A TA=25℃ 5.5 IDSM TA=70℃ 4.5 Single Pulse Avalanche Current (Note 3) IAS 15 Single Pulse Avalanche Energy (Note 3) L=0.3mH EAS 34 mJ Power Dissipation (Note 2) Power Dissipation (Note 1) TC=25℃ 38 PD TC=100℃ 15.5 W TA=25℃ 4.1 PDSM TA=70℃ 2.
