2KK5099 - N-Channel MOSFET

Key Features

  • ƽ Low on-resistance. ƽ Fast switching speed. ƽ Low voltage drive (2.5V) makes this device ideal for portable equipment. ƽ Easily designed drive circuits. ƽ Easy to parallel. Gate Drain Gate Protection Diode Source SOT-723 Unit:mm 1.20 ± 0.05 0.800 (typ) 0.22 ± 0.05 1 3 2 0.80 ± 0.05 1.20 ± 0.05 7° REF. 7° REF. 0.15 (max) 0.32 ± 0.05 0.50 (max) 1. Gate 2. Source 3. Drain 0.050 (max) Ƶ Absolute Maximum Ratings Ta = 25ć Parameter Symbol Rating Unit Drain-Source Voltage Ga.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2KK904 N-Channel Silicon Power MOS FET Fuji Semiconductors

Other Datasheets by Kexin Semiconductor

Part Number Description
2KK5092 N-Channel MOSFET
2KK5093 N-Channel MOSFET
2KK5095 N-Channel MOSFET
2KK5096DFN N-Channel MOSFET
2KK5097DFN N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

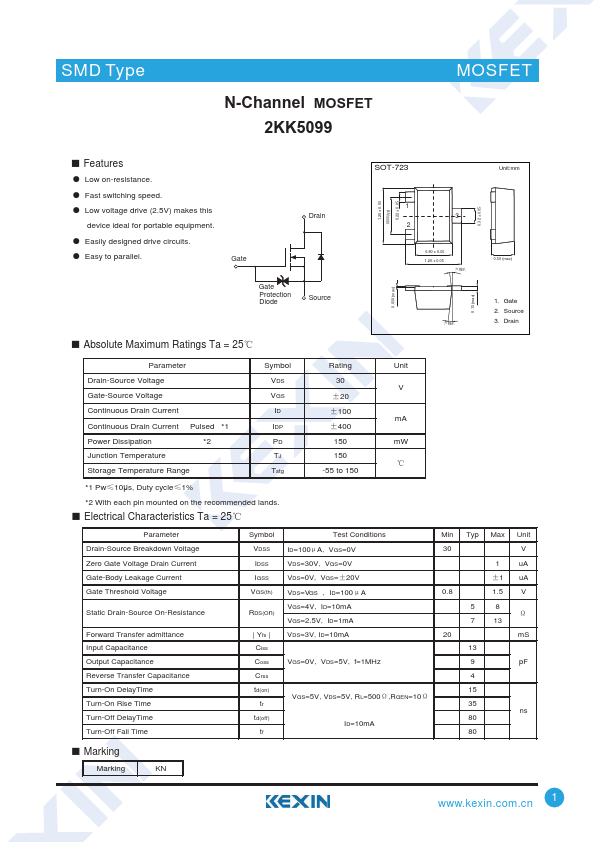

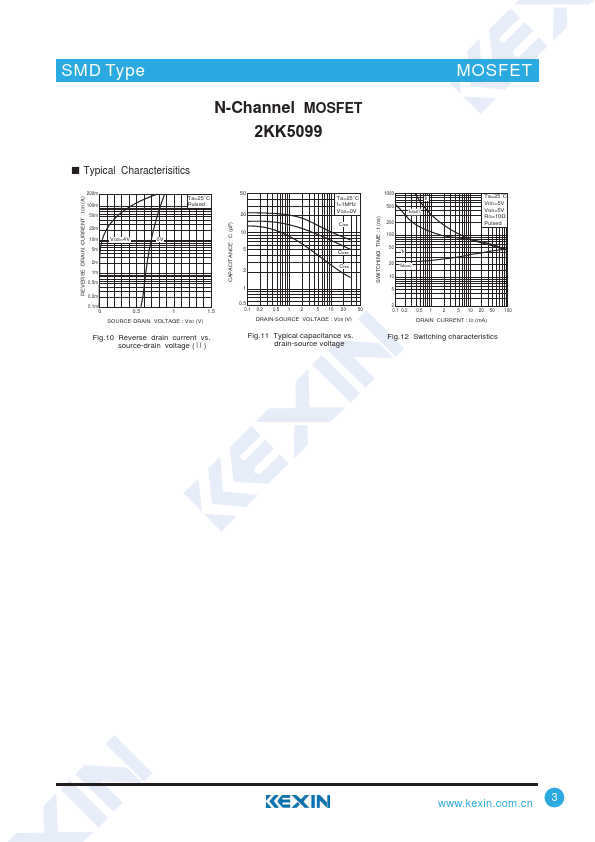

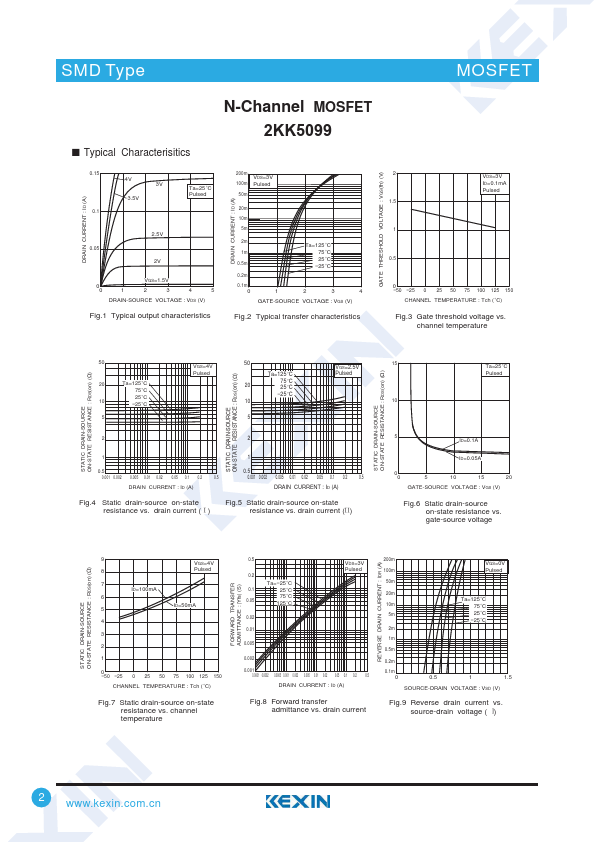

SMD Type N-Channel MOSFET 2KK5099 MOSFET Ƶ Features ƽ Low on-resistance. ƽ Fast switching speed. ƽ Low voltage drive (2.5V) makes this device ideal for portable equipment. ƽ Easily designed drive circuits. ƽ Easy to parallel. Gate Drain Gate Protection Diode Source SOT-723 Unit:mm 1.20 ± 0.05 0.800 (typ) 0.22 ± 0.05 1 3 2 0.80 ± 0.05 1.20 ± 0.05 7° REF. 7° REF. 0.15 (max) 0.32 ± 0.05 0.50 (max) 1. Gate 2. Source 3. Drain 0.
