2KK5122DFN - N-Channel MOSFET

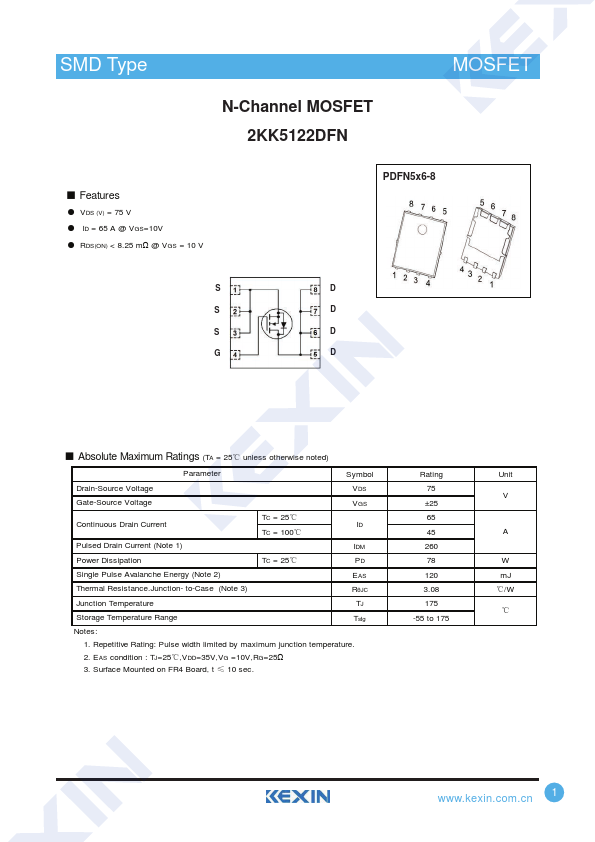

Key Features

  • s.
  • VDS (V) = 75 V.
  • ID = 65 A @ VGS=10V.
  • RDS(ON) < 8.25 mΩ @ VGS = 10 V PDFN5x6-8 S D S D S D G D.
  • Absolute Maximum Ratings (TA = 25℃ unless otherwise noted) Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS Continuous Drain Current TC = 25℃ ID TC = 100℃ Pulsed Drain Current (Note 1) IDM Power Dissipation TC = 25℃ PD Single Pulse Avalanche Energy (Note 2) EAS Thermal Resistance. Junction- to-Case (Note 3) RθJC Junction Temperature TJ.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2KK904 N-Channel Silicon Power MOS FET Fuji Semiconductors

Other Datasheets by Kexin Semiconductor

Part Number Description
2KK5120DFN N-Channel MOSFET
2KK5125DFN N-Channel MOSFET
2KK5127 N-Channel MOSFET
2KK5129 N-Channel MOSFET
2KK5100DFN N-Channel MOSFET

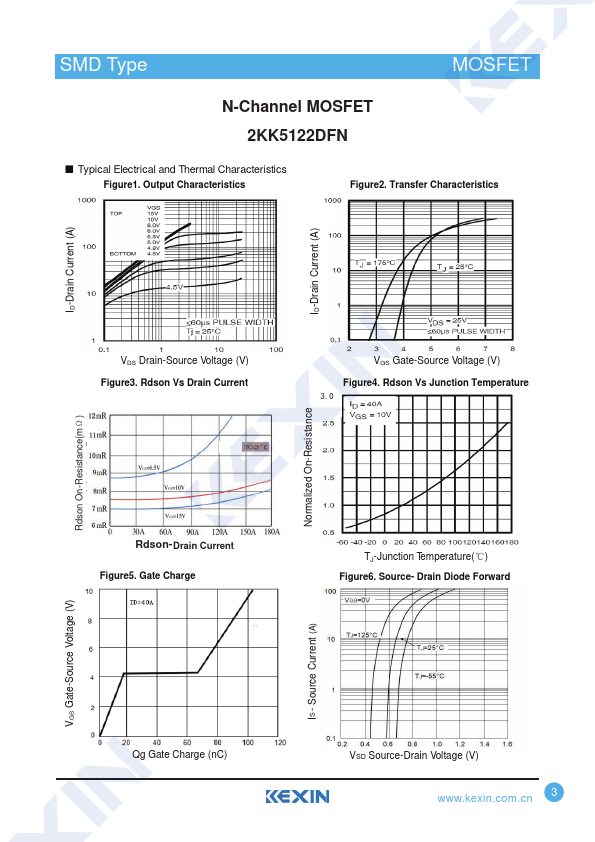

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

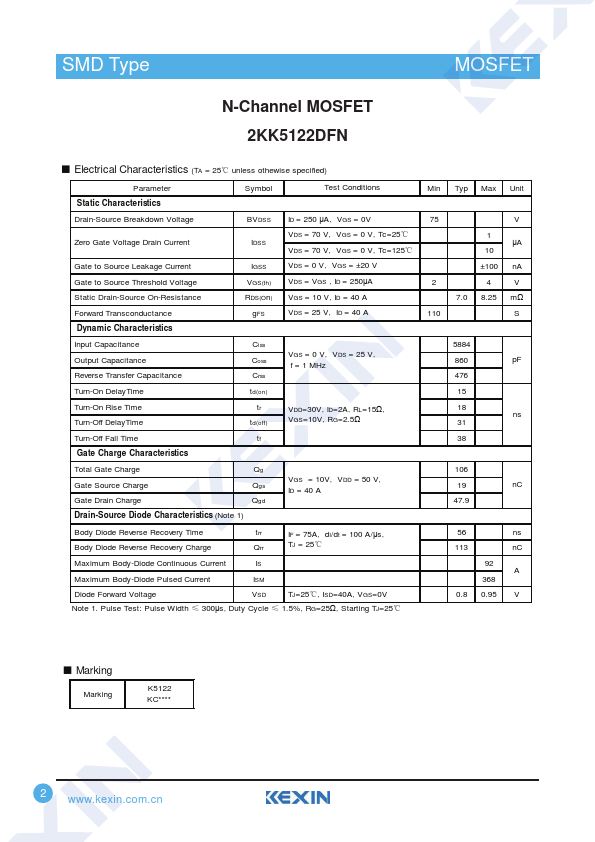

SMD Type N-Channel MOSFET 2KK5122DFN MOSFET ■ Features ● VDS (V) = 75 V ● ID = 65 A @ VGS=10V ● RDS(ON) < 8.25 mΩ @ VGS = 10 V PDFN5x6-8 S D S D S D G D ■ Absolute Maximum Ratings (TA = 25℃ unless otherwise noted) Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS Continuous Drain Current TC = 25℃ ID TC = 100℃ Pulsed Drain Current (Note 1) IDM Power Dissipation TC = 25℃ PD Single Pulse Avalanche Energy (Note 2) EAS Thermal Resistance.Junction- to-Case (Note 3) RθJC Junction Temperature TJ Storage Temperature Range Tstg Notes: 1. Repetitive Rating: Pulse width limited by maximum junction temperature. 2. EAS condition : TJ=25℃,VDD=35V,VG =10V,RG=25Ω 3. Surface Mounted on FR4 Board, t ≤ 10 sec. Rating 75 ±25 65 45 260 78 120 3.
