2KK5127 - N-Channel MOSFET

Key Features

  • VDS (V) = 40V ID = 5.8 A (VGS = 10V) RDS(ON) 24m (VGS = 10V) RDS(ON) 45m (VGS = 4.5V) D G S +0.2 2.8 -0.1 SOT-23-3 2.9 +0.2 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.2 +0.2 1.6 -0.1 +0.2 1.1 -0.1 0.55 0.4 Unit : mm 0.15 +0.02 -0.02 1. Gate 2. Source 3. Drain 0-0.1 +0.1 0.68 -0.1 Absolute Maximum Ratings Ta = 25 Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current Pulsed Drain Current Power Dissipation Thermal Resistance. Junction- to-Ambient Ther.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2KK904 N-Channel Silicon Power MOS FET Fuji Semiconductors

Other Datasheets by Kexin Semiconductor

Part Number Description
2KK5120DFN N-Channel MOSFET
2KK5122DFN N-Channel MOSFET
2KK5125DFN N-Channel MOSFET
2KK5129 N-Channel MOSFET
2KK5100DFN N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

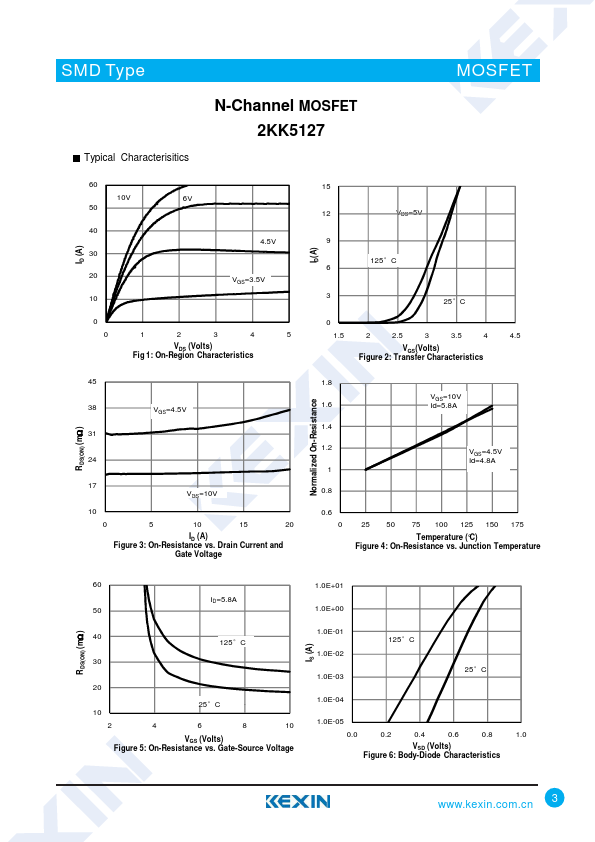

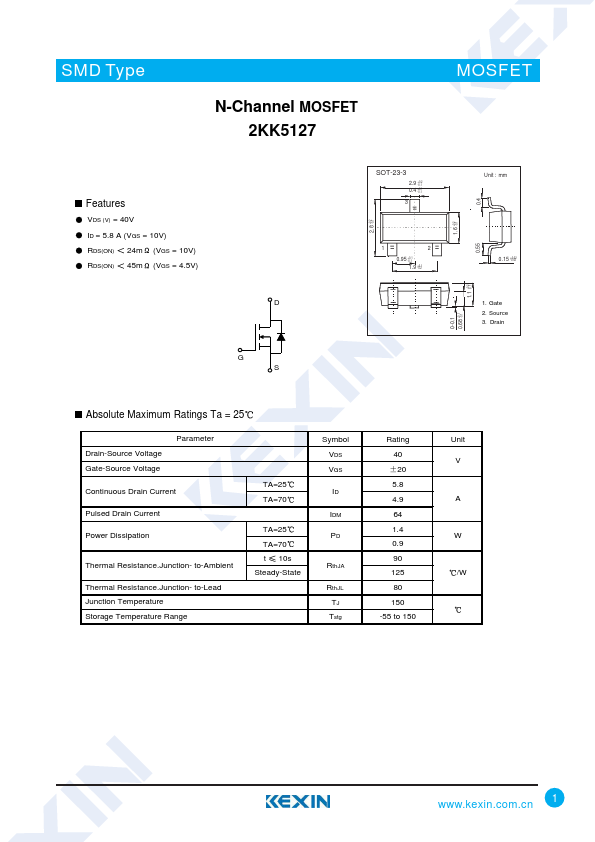

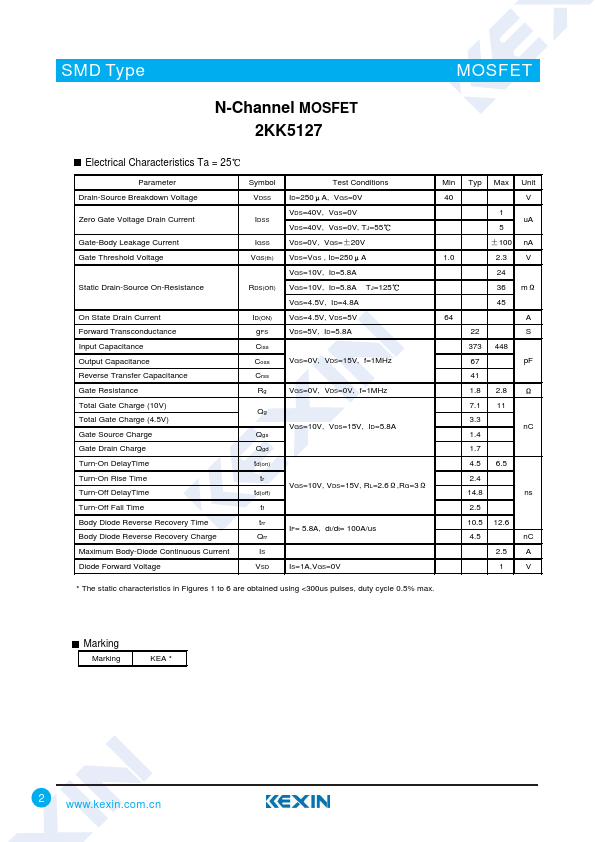

SMD Type N-Channel MOSFET 2KK5127 MOSFET Features VDS (V) = 40V ID = 5.8 A (VGS = 10V) RDS(ON) 24m (VGS = 10V) RDS(ON) 45m (VGS = 4.5V) D G S +0.2 2.8 -0.1 SOT-23-3 2.9 +0.2 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.2 +0.2 1.6 -0.1 +0.2 1.1 -0.1 0.55 0.4 Unit : mm 0.15 +0.02 -0.02 1. Gate 2. Source 3. Drain 0-0.1 +0.1 0.68 -0.1 Absolute Maximum Ratings Ta = 25 Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current Pulsed Drain Current Power Dissipation Thermal Resistance.Junction- to-Ambient Thermal Resistance.Junction- to-Lead Junction Temperature Storage Temperature Range TA=25 TA=70 TA=25 TA=70 t 10s Steady-State Symbol VDS VGS ID IDM PD RthJA RthJL TJ Tstg Rating 40 ±20 5.8 4.9 64 1.4 0.
