Low VCE(sat) Compliments to 2SB1132
1.70 0.1
0.42 0.1
0.46 0.1
Absolute Maximum Ratings Ta = 25
Parameter
Symbol
Rating
Unit
Collector-Base Voltage
VCBO
40
V
Collector-Emitter Voltage
VCEO
32
V
Emitter-Base Voltage
VEBO
5
V
Collector Current
(DC)
1
A
IC
PW=20ms, duty=1/2
2
A
Collector Power Dissipation
PC.
0.5
W
Jumction temperature
Tj
150
Storage temperature Range
Tstg
-55 to +150.
mounted on a 40x40x0.7mm ceramic board. 1.Base 2.Collector 3.Emi.
Full PDF Text Transcription for 2SD1664 (Reference)
Note: Below is a high-fidelity text extraction (approx. 800 characters) for
2SD1664. For precise diagrams, and layout, please refer to the original PDF.

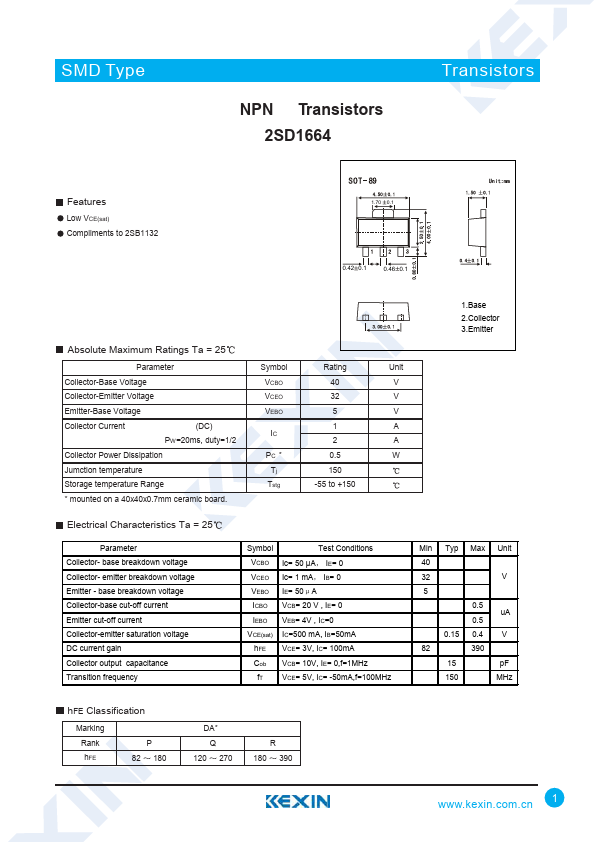

SMD Type NPN Transistors 2SD1664 Transistors Features Low VCE(sat) Compliments to 2SB1132 1.70 0.1 0.42 0.1 0.46 0.1 Absolute Maximum Ratings Ta = 25 Parameter Symbol Rat...
