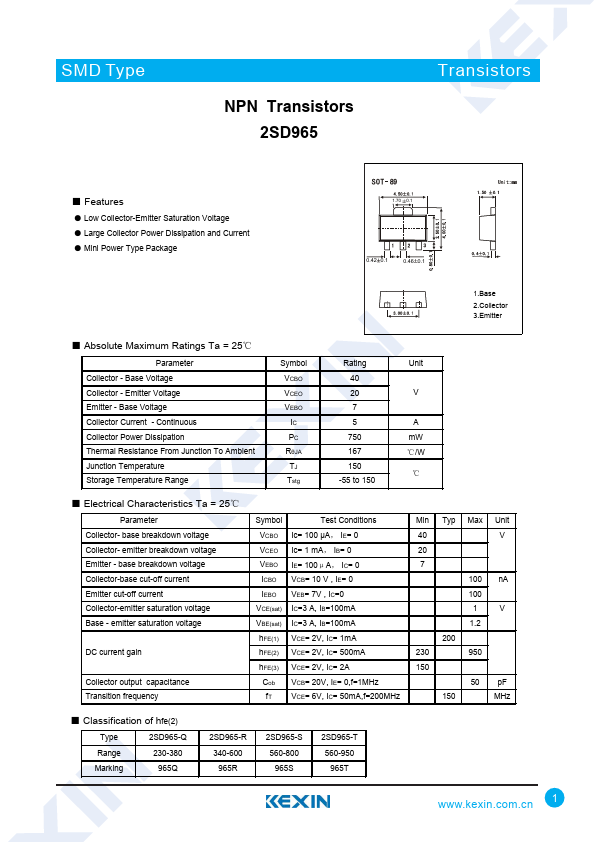

2SD965
Features
- Low Collector-Emitter Saturation Voltage
- Large Collector Power Dissipation and Current
- Mini Power Type Package
1.70 0.1
0.42 0.1
0.46 0.1
1.Base 2.Collector 3.Emitter
- Absolute Maximum Ratings Ta = 25℃
Parameter Collector
- Base Voltage Collector
- Emitter Voltage Emitter
- Base Voltage Collector Current
- Continuous Collector Power Dissipation Thermal Resistance From Junction To Ambient Junction Temperature Storage Temperature Range
Symbol VCBO VCEO VEBO IC PC RθJA TJ Tstg
Rating 40 20 7 5 750 167 150
-55 to 150
Unit
A m W ℃/W ℃
- Electrical Characteristics Ta = 25℃
Parameter Collector- base breakdown voltage Collector- emitter breakdown voltage Emitter
- base breakdown voltage Collector-base cut-off current Emitter cut-off current Collector-emitter saturation voltage Base
- emitter saturation voltage
DC current gain
Collector output capacitance Transition frequency
Symbol
Test Conditions
VCBO Ic= 100 μA， IE= 0
VCEO Ic= 1 m A， IB= 0
VEBO IE= 100μA， IC=...
