2SJ3047DS - P-Channel Enhancement MOSFET

Key Features

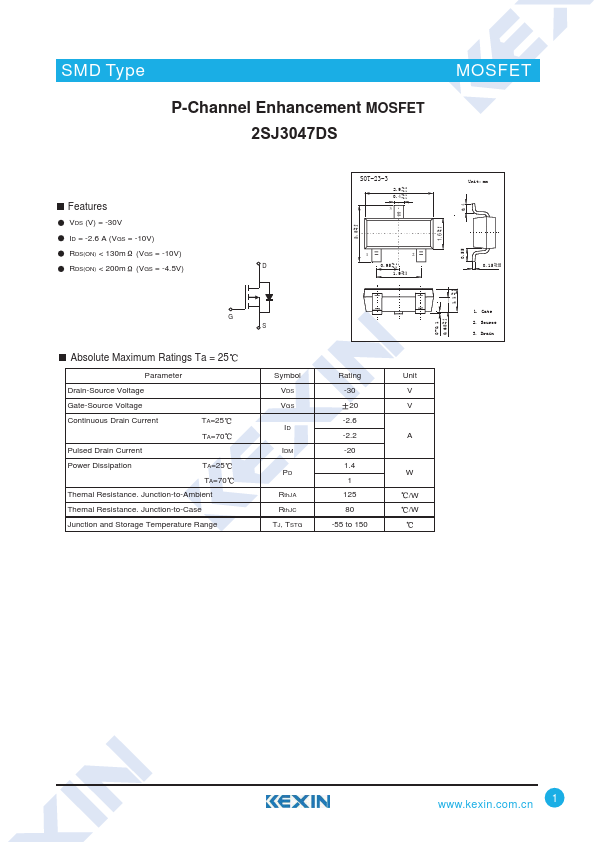

  • VDS (V) = -30V ID = -2.6 A (VGS = -10V) RDS(ON) < 130m (VGS = -10V) RDS(ON) < 200m (VGS = -4.5V) D    627       3 1 2       G S Absolute Maximum Ratings Ta = 25 Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current TA=25 TA=70 Pulsed Drain Current Power Dissipation TA=25 TA=70 Themal Resistance. Junction-to-Ambient Themal Resistance. Junction-to-Case Junction and Storage Temperature Range.
