2SK3116 - MOS Field Effect Transistor

Key Features

  • Low gate charge QG = 26 nC TYP. (ID = 7.5 A, VDD = 450 V, VGS = 10 V) Gate voltage rating 30 V Low on-state resistance RDS(on) = 1.2 MAX. (VGS = 10 V, ID = 3.75 A) Avalanche capability ratings +0.2 5.28 -0.2 +0.2 8.7 -0.2 TO-263 +0.2 4.57 +0.1 -0.2 1.27-0.1 Unit: mm +0.1 1.27 -0.1 +0.2 2.54 -0.2 15.25-+00..22 5.60 1.27+0.1 -0.1 0.1max 2.54+0.2 -0.2 5.08+0.1 -0.1 0.81+0.1 -0.1 2.54 0.4+0.2 -0.2 1 Gate 2 Drain 3 Source Absolute Maximum Ratings Ta = 25 Parameter Drain to source v.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SK3116 SWITCHING N-CHANNEL POWER MOS FET NEC
2SK311 N-Channel MOSFET Transistor Inchange Semiconductor
2SK311 (2SK310 / 2SK311) SILICON N-CHANNEL MOS FET Hitachi Semiconductor
2SK3110 N-Channel MOSFET NEC
2SK3111 N-Channel MOSFET NEC

Other Datasheets by Kexin Semiconductor

Part Number Description
2SK3111 MOS Field Effect Transistor
2SK3112 MOS Field Effect Transistor
2SK3109 MOS Field Effect Transistor
2SK3147S Silicon N-Channel MOSFET
2SK3012DSE N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

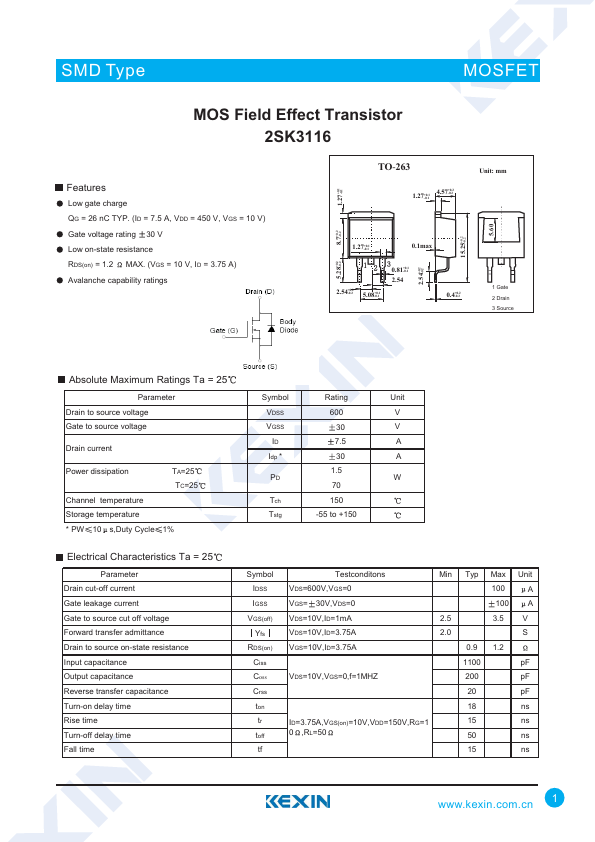

SMD Type MOSFET MOS Field Effect Transistor 2SK3116 Features Low gate charge QG = 26 nC TYP. (ID = 7.5 A, VDD = 450 V, VGS = 10 V) Gate voltage rating 30 V Low on-state resistance RDS(on) = 1.2 MAX. (VGS = 10 V, ID = 3.75 A) Avalanche capability ratings +0.2 5.28 -0.2 +0.2 8.7 -0.2 TO-263 +0.2 4.57 +0.1 -0.2 1.27-0.1 Unit: mm +0.1 1.27 -0.1 +0.2 2.54 -0.2 15.25-+00..22 5.60 1.27+0.1 -0.1 0.1max 2.54+0.2 -0.2 5.08+0.1 -0.1 0.81+0.1 -0.1 2.54 0.4+0.2 -0.2 1 Gate 2 Drain 3 Source Absolute Maximum Ratings Ta = 25 Parameter Drain to source voltage Gate to source voltage Drain current Power dissipation TA=25 TC=25 Channel temperature Storage temperature * PW 10 s,Duty Cycle 1% Symbol Rating Unit VDSS 600 V VGSS 30 V ID 7.5 A Idp * 30 A 1.
