2SK3147S - Silicon N-Channel MOSFET

Key Features

  • Low on-resistance RDS = 0.1 typ. High speed switching 4 V gate drive device can be driven from 5 V source +0.2 9.70 -0.2 TO-252 6.50+0.15 -0.15 5.30+0.2 -0.2 2.30+0.1 -0.1 0.50+0.8 -0.7 Unit: mm +0.15 1.50 -0.15 3.80 +0.15 5.55 -0.15 0.80+0.1 -0.1 0.127 max 2.3 4.60+0.15 -0.15 0.60+0.1 -0.1 +0.15 0.50 -0.15 +0.28 1.50 -0.1 +0.25 2.65 -0.1 1 Gate 2 Drain 3 Source Absolute Maximum Ratings Ta = 25 Parameter Drain to source voltage Gate to source voltage Drain current Power dissipati.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SK3147S N-Channel MOSFET Hitachi Semiconductor
2SK3147S Silicon N-Channel Power MOSFET Renesas
2SK3147 N-Channel MOSFET Hitachi Semiconductor
2SK3147 Silicon N-Channel Power MOSFET Renesas
2SK3147L N-Channel MOSFET Hitachi Semiconductor

Other Datasheets by Kexin Semiconductor

Part Number Description
2SK3109 MOS Field Effect Transistor
2SK3111 MOS Field Effect Transistor
2SK3112 MOS Field Effect Transistor
2SK3116 MOS Field Effect Transistor
2SK3012DSE N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

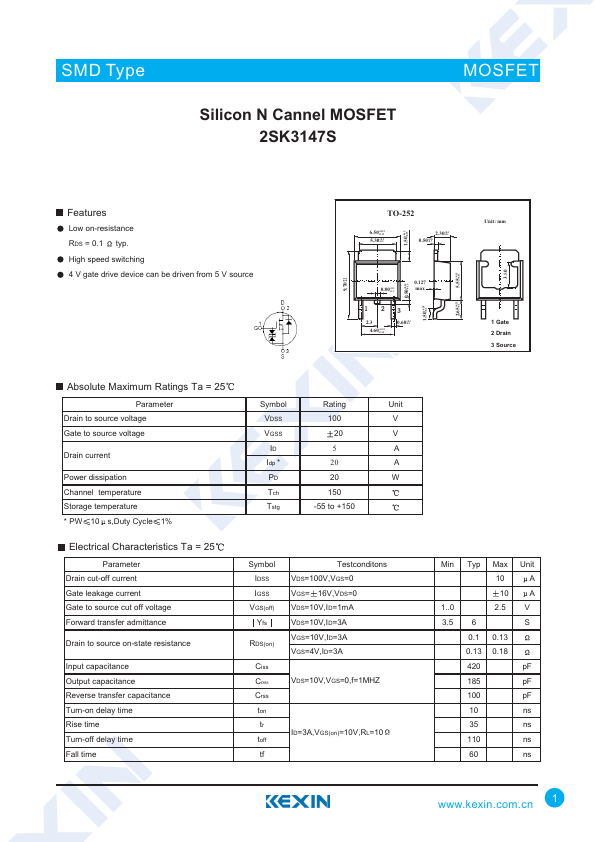

SMD Type Silicon N Cannel MOSFET 2SK3147S MOSFICET Features Low on-resistance RDS = 0.1 typ. High speed switching 4 V gate drive device can be driven from 5 V source +0.2 9.70 -0.2 TO-252 6.50+0.15 -0.15 5.30+0.2 -0.2 2.30+0.1 -0.1 0.50+0.8 -0.7 Unit: mm +0.15 1.50 -0.15 3.80 +0.15 5.55 -0.15 0.80+0.1 -0.1 0.127 max 2.3 4.60+0.15 -0.15 0.60+0.1 -0.1 +0.15 0.50 -0.15 +0.28 1.50 -0.1 +0.25 2.65 -0.
