2SK3431 - MOS Field Effect Transistor

Features

  • Super low on-state resistance: RDS(on)1 = 5.6m MAX. (VGS = 10 V, ID = 42 A) RDS(on)2 = 8.9 m MAX. (VGS = 4 V, ID = 42 A) Low Ciss: Ciss = 6100 pF TYP. Built-in gate protection diode +0.2 5.28 -0.2 +0.2 8.7 -0.2 TO-263 +0.2 4.57 +0.1 -0.2 1.27-0.1 Unit: mm +0.1 1.27 -0.1 +0.2 2.54 -0.2 15.25-+00..22 5.60 1.27+0.1 -0.1 0.1max 2.54+0.2 -0.2 5.08+0.1 -0.1 0.81+0.1 -0.1 2.54 0.4+0.2 -0.2 1 Gate 2 Drain 3 Source Absolute Maximum Ratings Ta = 25 Parameter Drain to source voltage Gate.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SK3431 N-Channel MOSFET Transistor Inchange Semiconductor
2SK3431 N-Channel MOSFET NEC
2SK3431-S N-Channel MOSFET Transistor Inchange Semiconductor
2SK3431-Z N-Channel MOSFET Transistor Inchange Semiconductor
2SK343 N-Channel MOSFET Hitachi

Other Datasheets by Kexin Semiconductor

Part Number Description
2SK3430 MOS Field Effect Transistor
2SK3432 MOS Field Effect Transistor
2SK3424 MOSFET
2SK3458 MOS Field Effect Transistor
2SK3467 MOS Field Effect Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

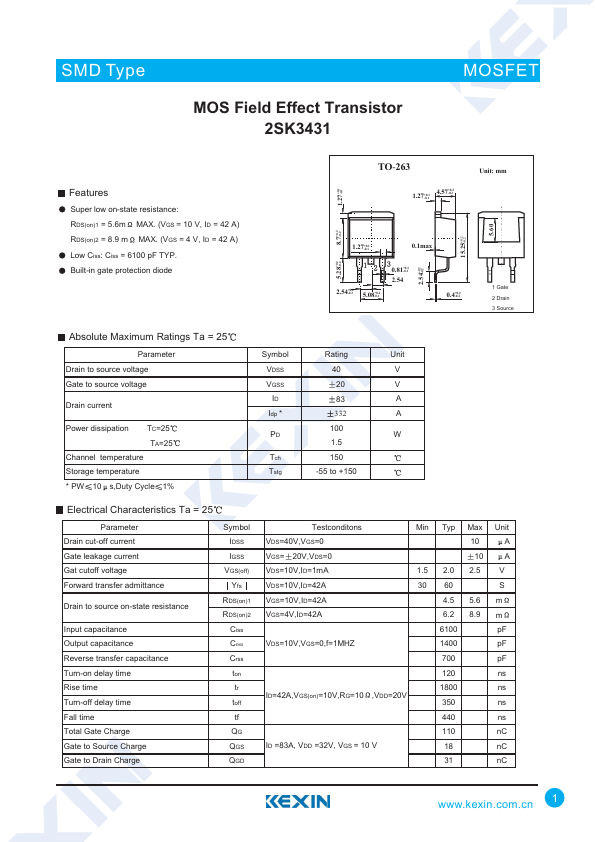

SMD Type MOS Field Effect Transistor 2SK3431 MOSFET Features Super low on-state resistance: RDS(on)1 = 5.6m MAX. (VGS = 10 V, ID = 42 A) RDS(on)2 = 8.9 m MAX. (VGS = 4 V, ID = 42 A) Low Ciss: Ciss = 6100 pF TYP. Built-in gate protection diode +0.2 5.28 -0.2 +0.2 8.7 -0.2 TO-263 +0.2 4.57 +0.1 -0.2 1.27-0.1 Unit: mm +0.1 1.27 -0.1 +0.2 2.54 -0.2 15.25-+00..22 5.60 1.27+0.1 -0.1 0.1max 2.54+0.2 -0.2 5.08+0.1 -0.1 0.81+0.1 -0.1 2.54 0.4+0.2 -0.2 1 Gate 2 Drain 3 Source Absolute Maximum Ratings Ta = 25 Parameter Drain to source voltage Gate to source voltage Drain current Power dissipation TC=25 TA=25 Channel temperature Storage temperature * PW 10 s,Duty Cycle 1% Symbol Rating Unit VDSS 40 V VGSS 20 V ID 83 A Idp * 332 A 100 PD W 1.
