2SK3434 Datasheet MOS Field Effect Transistor

Manufacturer: Kexin Semiconductor

Overview: SMD Type MOS Field Effect Transistor 2SK3434 MOSFET.

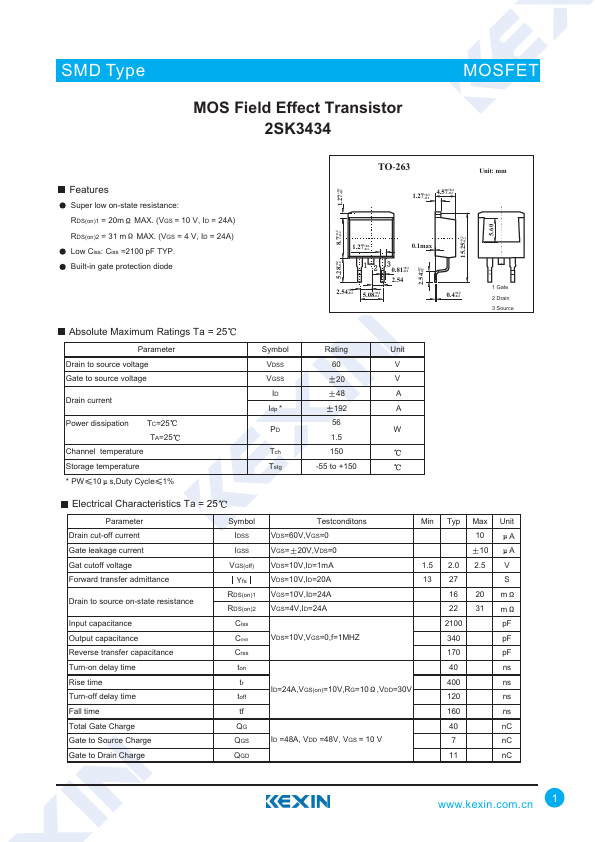

2SK3434 mos field effect transistor by Kexin Semiconductor - Datasheet Preview

Datasheet Details

Part number	2SK3434
Manufacturer	Kexin Semiconductor
File Size	40.89 KB
Description	MOS Field Effect Transistor
Download	2SK3434 Download (PDF)

Key Features

Super low on-state resistance: RDS(on)1 = 20m MAX. (VGS = 10 V, ID = 24A) RDS(on)2 = 31 m MAX. (VGS = 4 V, ID = 24A) Low Ciss: Ciss =2100 pF TYP. Built-in gate protection diode +0.2 5.28 -0.2 +0.2 8.7 -0.2 TO-263 +0.2 4.57 +0.1 -0.2 1.27-0.1 Unit: mm +0.1 1.27 -0.1 +0.2 2.54 -0.2 15.25-+00..22 5.60 1.27+0.1 -0.1 0.1max 2.54+0.2 -0.2 5.08+0.1 -0.1 0.81+0.1 -0.1 2.54 0.4+0.2 -0.2 1 Gate 2 Drain 3 Source Absolute Maximum Ratings Ta = 25 Parameter Drain to source voltage Gate to s.
