AO4411 Datasheet P-channel MOSFET

Manufacturer: Kexin Semiconductor

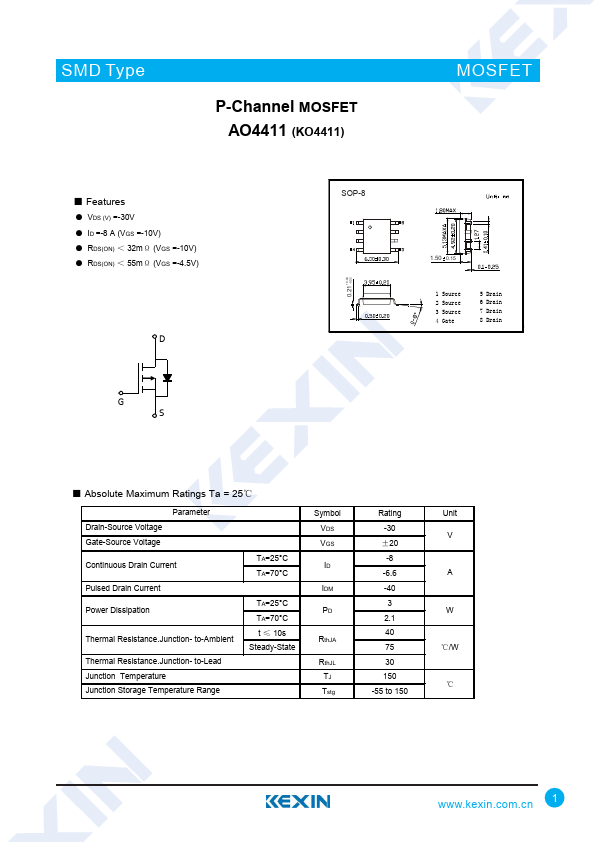

Overview: SMD Type P-Channel MOSFET AO4411 (KO4411) ■.

Key Features

  • s.
  • VDS (V) =-30V.
  • ID =-8 A (VGS =-10V).
  • RDS(ON) ＜ 32mΩ (VGS =-10V).
  • RDS(ON) ＜ 55mΩ (VGS =-4.5V) SOP-8 +0.04 0.21 -0.02 D G S MOSFET 1.50 0.15 1 Source 2 Source 3 Source 4 Gate 5 Drain 6 Drain 7 Drain 8 Drain.
  • Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current Pulsed Drain Current Power Dissipation Thermal Resistance. Junction- to-Ambient Thermal Resistance. Junction- to-Lead Junction Temperature Junct.
