AO4418
AO4418 is N-Channel MOSFET manufactured by Kexin Semiconductor.

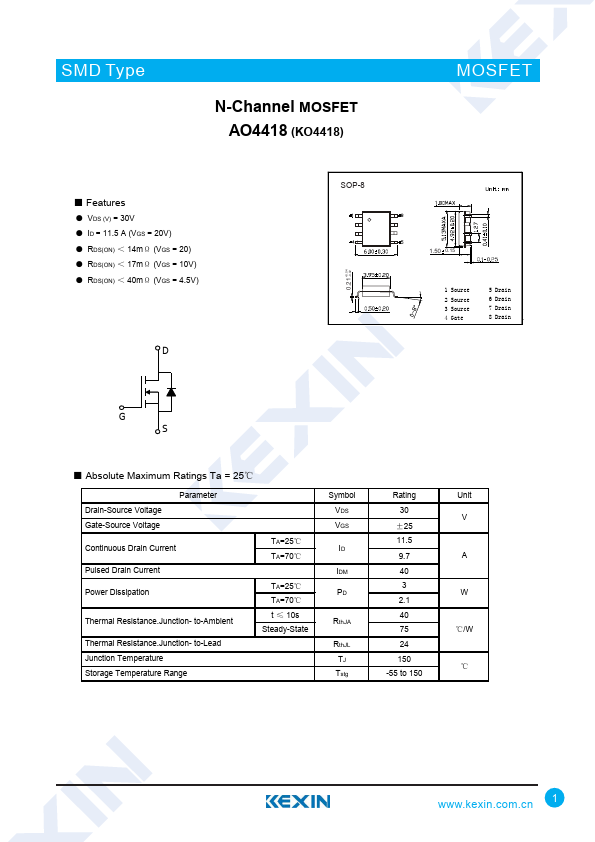

Features
- VDS (V) = 30V
- ID = 11.5 A (VGS = 20V)
- RDS(ON) ＜ 14mΩ (VGS = 20)
- RDS(ON) ＜ 17mΩ (VGS = 10V)
- RDS(ON) ＜ 40mΩ (VGS = 4.5V)
SOP-8
+0.04 0.21 -0.02
MOSFET
1.50 0.15
1 Source 2 Source 3 Source 4 Gate
5 Drain 6 Drain 7 Drain 8 Drain
- Absolute Maximum Ratings Ta = 25℃
Drain-Source Voltage Gate-Source Voltage
Parameter
Continuous Drain Current
Pulsed Drain Current
Power Dissipation
Thermal Resistance.Junction- to-Ambient
Thermal Resistance.Junction- to-Lead Junction Temperature Storage Temperature Range
TA=25℃ TA=70℃
TA=25℃ TA=70℃ t ≤ 10s Steady-State
Symbol VDS VGS ID
IDM PD
Rth JA Rth JL
TJ Tstg
Rating 30
±25 11.5 9.7 40
3 2.1 40 75 24 150 -55 to 150
Unit V A W
℃/W ℃
.kexin..cn 1
SMD Type
MOSFET
N-Channel MOSFET AO4418 (KO4418)

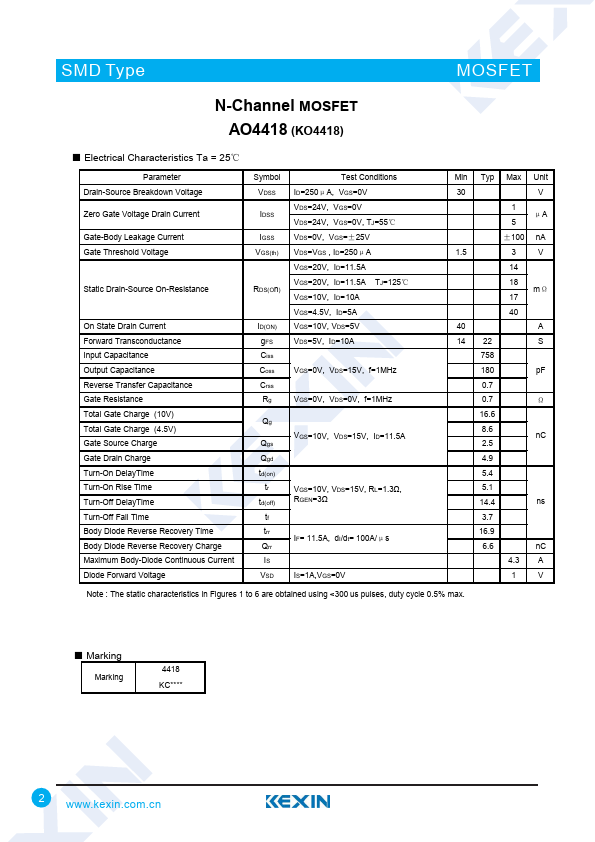

- Electrical Characteristics Ta = 25℃
Parameter Drain-Source Breakdown Voltage
Zero Gate Voltage Drain...
