AO4415 - P-Channel MOSFET

Key Features

  • s.
  • VDS (V) =-30V.
  • ID =-8 A (VGS =-20V).
  • RDS(ON) ＜ 26mΩ (VGS =-20V).
  • RDS(ON) ＜ 35mΩ (VGS =-10V) SOP-8 +0.04 0.21 -0.02 D MOSFET 1.50 0.15 1 Source 2 Source 3 Source 4 Gate 5 Drain 6 Drain 7 Drain 8 Drain G S.
  • Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current Pulsed Drain Current Power Dissipation Thermal Resistance. Junction- to-Ambient Thermal Resistance. Junction- to-Lead Junction Temperature Junct.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AO4415 P-Channel FET Alpha & Omega Semiconductors
AO4415 P-Channel MOSFET Freescale
AO4415 P-Channel 30V MOSFET VBsemi
AO4410 30V N-Channel MOSFET Alpha & Omega Semiconductors
AO4410 N-Channel MOSFET VBsemi

Other Datasheets by Kexin Semiconductor

Part Number Description
AO4410 N-Channel MOSFET
AO4411 P-Channel MOSFET
AO4413 P-Channel MOSFET
AO4418 N-Channel MOSFET
AO4419 P-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

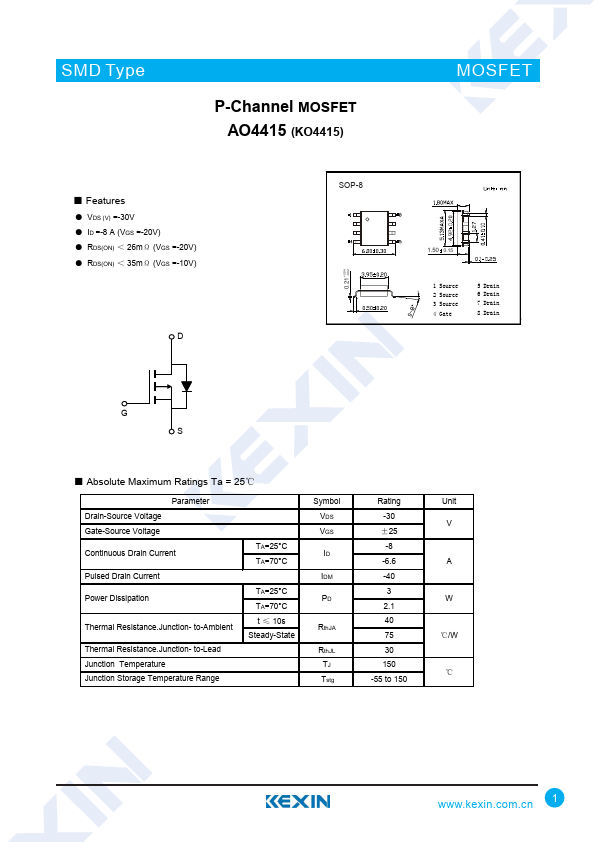

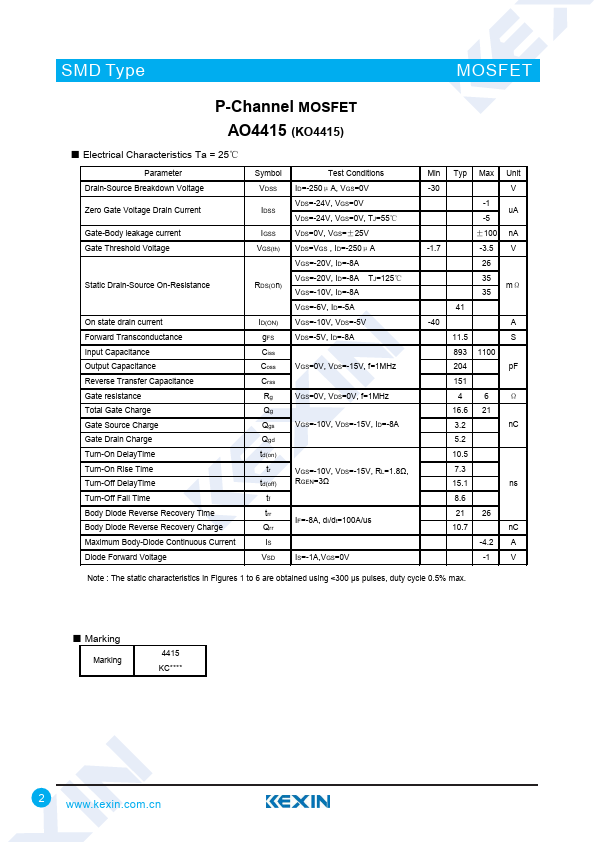

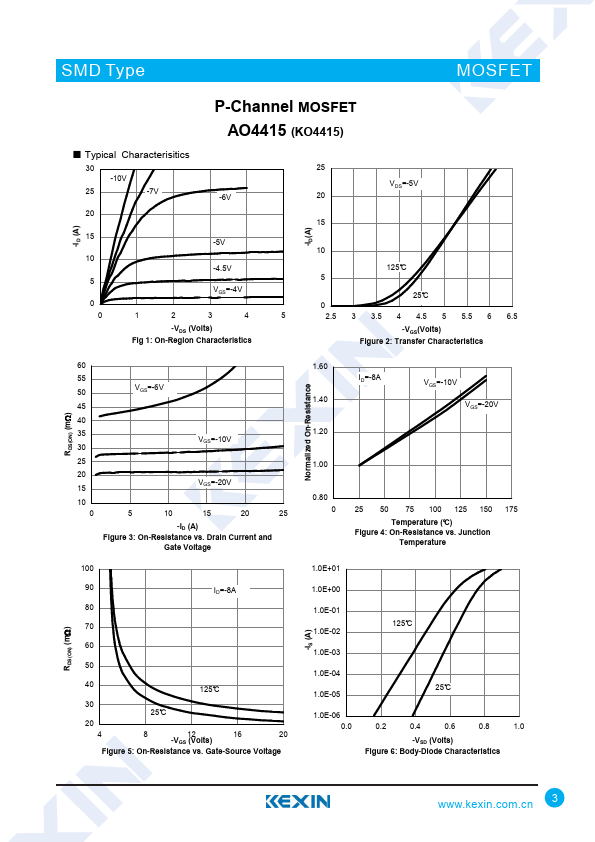

SMD Type P-Channel MOSFET AO4415 (KO4415) ■ Features ● VDS (V) =-30V ● ID =-8 A (VGS =-20V) ● RDS(ON) ＜ 26mΩ (VGS =-20V) ● RDS(ON) ＜ 35mΩ (VGS =-10V) SOP-8 +0.04 0.21 -0.02 D MOSFET 1.50 0.15 1 Source 2 Source 3 Source 4 Gate 5 Drain 6 Drain 7 Drain 8 Drain G S ■ Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current Pulsed Drain Current Power Dissipation Thermal Resistance.Junction- to-Ambient Thermal Resistance.Junction- to-Lead Junction Temperature Junction Storage Temperature Range TA=25°C TA=70°C TA=25°C TA=70°C t ≤ 10s Steady-State Symbol VDS VGS ID IDM PD RthJA RthJL TJ Tstg Rating -30 ±25 -8 -6.6 -40 3 2.1 40 75 30 150 -55 to 150 Unit V A W ℃/W ℃ www.kexin.com.
