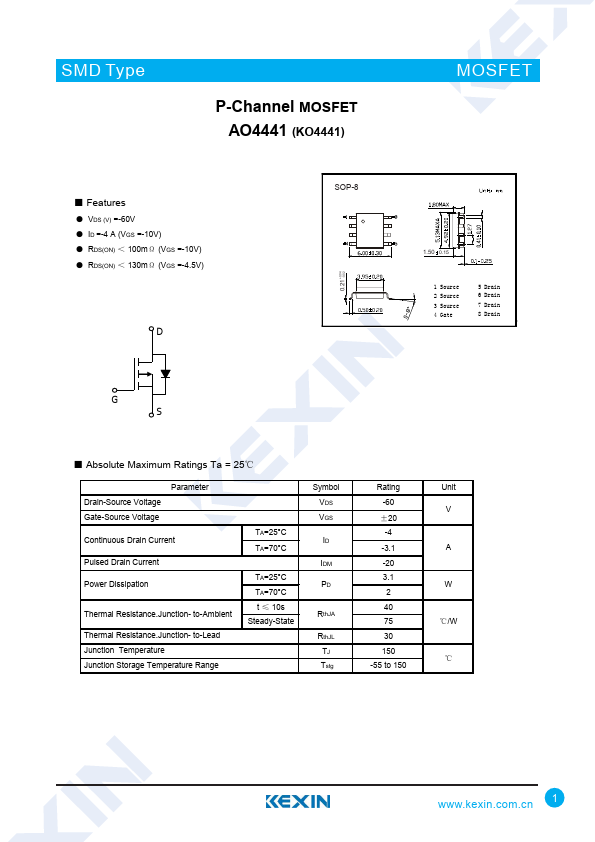

AO4441
AO4441 is P-Channel MOSFET manufactured by Kexin Semiconductor.
Features
- VDS (V) =-60V
- ID =-4 A (VGS =-10V)
- RDS(ON) ＜ 100mΩ (VGS =-10V)
- RDS(ON) ＜ 130mΩ (VGS =-4.5V)
SOP-8
+0.04 0.21 -0.02
MOSFET
1.50 0.15
1 Source 2 Source 3 Source 4 Gate
5 Drain 6 Drain 7 Drain 8 Drain
- Absolute Maximum Ratings Ta = 25℃
Drain-Source Voltage Gate-Source Voltage
Parameter
Continuous Drain Current
Pulsed Drain Current
Power Dissipation
Thermal Resistance.Junction- to-Ambient
Thermal Resistance.Junction- to-Lead Junction Temperature Junction Storage Temperature Range
TA=25°C TA=70°C
TA=25°C TA=70°C t ≤ 10s Steady-State
Symbol VDS VGS ID
IDM PD
Rth JA Rth JL
TJ Tstg
Rating -60 ±20 -4 -3.1 -20 3.1 2 40 75 30 150
-55 to 150
Unit V A W
℃/W ℃
.kexin..cn 1
SMD Type
MOSFET
P-Channel MOSFET AO4441 (KO4441)

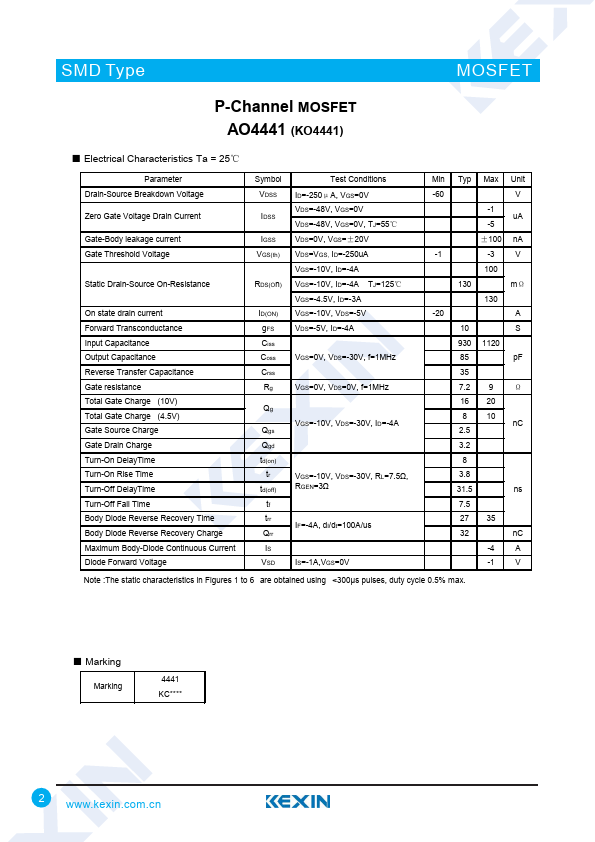

- Electrical Characteristics Ta = 25℃
Parameter Drain-Source Breakdown Voltage
Zero Gate Voltage Drain Current
Gate-Body leakage current Gate Threshold Voltage
Static Drain-Source...
