AO4447A - P-Channel MOSFET

Key Features

  • s.
  • VDS (V) =-30V.
  • ID =-17 A (VGS =-10V).
  • RDS(ON) ＜ 7mΩ (VGS =-10V).
  • RDS(ON) ＜ 8mΩ (VGS =-4.5V).
  • RDS(ON) ＜ 9mΩ (VGS =-4V).
  • ESD Rating: 2000V HBM D +0.04 0.21 -0.02 SOP-8 1.50 0.15 1 Source 2 Source 3 Source 4 Gate 5 Drain 6 Drain 7 Drain 8 Drain Rg G S.
  • Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current Pulsed Drain Current Power Dissipation Thermal Resistance. Junction- to-Ambient Thermal Re.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AO4447A 30V P-Channel MOSFET Alpha & Omega Semiconductors
AO4447 P-Channel MOSFET Alpha & Omega Semiconductors
AO4447 P-Channel 30V MOSFET VBsemi
AO4440 N-Channel MOSFET Alpha & Omega Semiconductors
AO4441 60V P-Channel MOSFET Alpha & Omega Semiconductors

Other Datasheets by Kexin Semiconductor

Part Number Description
AO4447A-HF P-Channel MOSFET
AO4447 P-Channel MOSFET
AO4440 N-Channel MOSFET
AO4441 P-Channel MOSFET
AO4442 N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

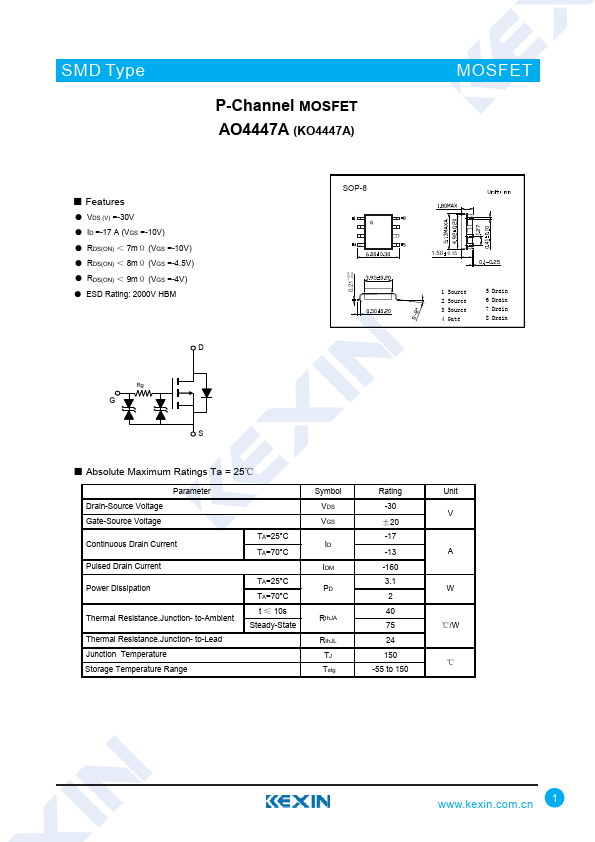

SMD Type P-Channel MOSFET AO4447A (KO4447A) MOSFET ■ Features ● VDS (V) =-30V ● ID =-17 A (VGS =-10V) ● RDS(ON) ＜ 7mΩ (VGS =-10V) ● RDS(ON) ＜ 8mΩ (VGS =-4.5V) ● RDS(ON) ＜ 9mΩ (VGS =-4V) ● ESD Rating: 2000V HBM D +0.04 0.21 -0.02 SOP-8 1.50 0.15 1 Source 2 Source 3 Source 4 Gate 5 Drain 6 Drain 7 Drain 8 Drain Rg G S ■ Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current Pulsed Drain Current Power Dissipation Thermal Resistance.Junction- to-Ambient Thermal Resistance.Junction- to-Lead Junction Temperature Storage Temperature Range TA=25°C TA=70°C TA=25°C TA=70°C t ≤ 10s Steady-State Symbol VDS VGS ID IDM PD RthJA RthJL TJ Tstg Rating -30 ±20 -17 -13 -160 3.1 2 40 75 24 150 -55 to 150 Unit V A W ℃/W ℃ www.kexin.
