AO4488 - N-Channel MOSFET

Key Features

  • s.
  • VDS (V) = 30V.
  • ID = 20 A (VGS = 10V).
  • RDS(ON) ＜ 4.6mΩ (VGS = 10V).
  • RDS(ON) ＜ 6.4mΩ (VGS = 4.5V).
  • ESD Rating: 2KV HBM +0.04 0.21 -0.02 SOP-8 D G S MOSFET Unit:mm 1.50 0.15 1 Source 2 Source 3 Source 4 Gate 5 Drain 6 Drain 7 Drain 8 Drain.
  • Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current Pulsed Drain Current Avalanche Current TA=25℃ TA=70℃ Repetitive Avalanche Energy Power Dissipation Therm.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AO4488 N-Channel MOSFET Alpha & Omega Semiconductors
AO4480 40V N-Channel MOSFET Alpha & Omega Semiconductors
AO4480 40V N-Channel Enhancement Mode MOSFET MAOYUAN
AO4480 40V N-ChanneI MOSFET UMW
AO4482 N-Channel MOSFET Freescale

Other Datasheets by Kexin Semiconductor

Part Number Description
AO4480 N-Channel MOSFET
AO4482 N-Channel MOSFET
AO4484 N-Channel MOSFET
AO4485 P-Channel MOSFET
AO4402 N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

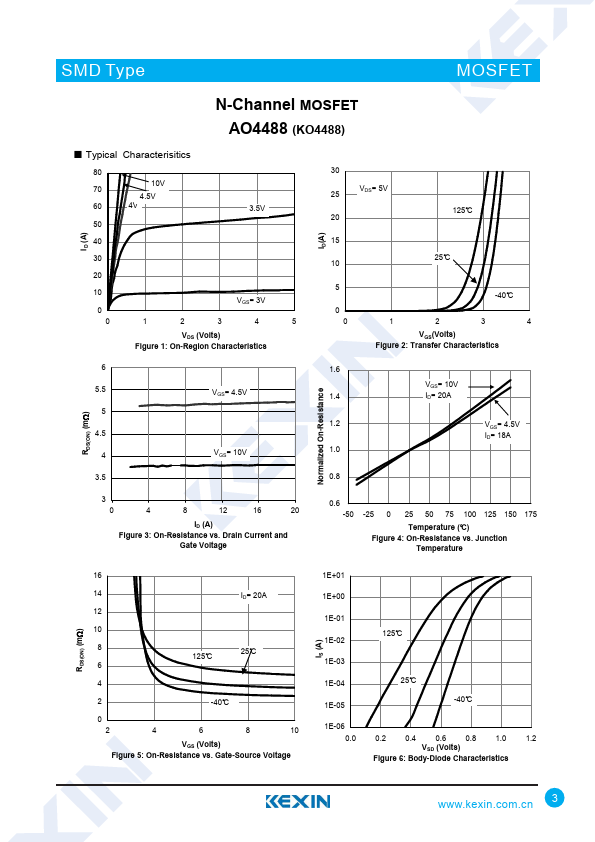

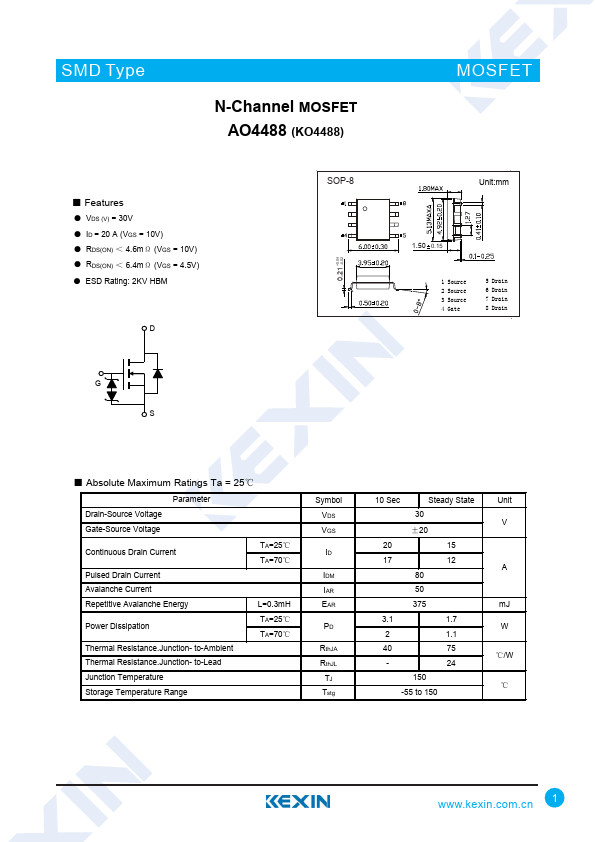

SMD Type N-Channel MOSFET AO4488 (KO4488) ■ Features ● VDS (V) = 30V ● ID = 20 A (VGS = 10V) ● RDS(ON) ＜ 4.6mΩ (VGS = 10V) ● RDS(ON) ＜ 6.4mΩ (VGS = 4.5V) ● ESD Rating: 2KV HBM +0.04 0.21 -0.02 SOP-8 D G S MOSFET Unit:mm 1.50 0.15 1 Source 2 Source 3 Source 4 Gate 5 Drain 6 Drain 7 Drain 8 Drain ■ Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current Pulsed Drain Current Avalanche Current TA=25℃ TA=70℃ Repetitive Avalanche Energy Power Dissipation Thermal Resistance.Junction- to-Ambient Thermal Resistance.Junction- to-Lead Junction Temperature Storage Temperature Range L=0.3mH TA=25℃ TA=70℃ Symbol VDS VGS ID IDM IAR EAR PD RthJA RthJL TJ Tstg 10 Sec Steady State 30 ±20 20 15 17 12 80 50 375 3.1 1.
