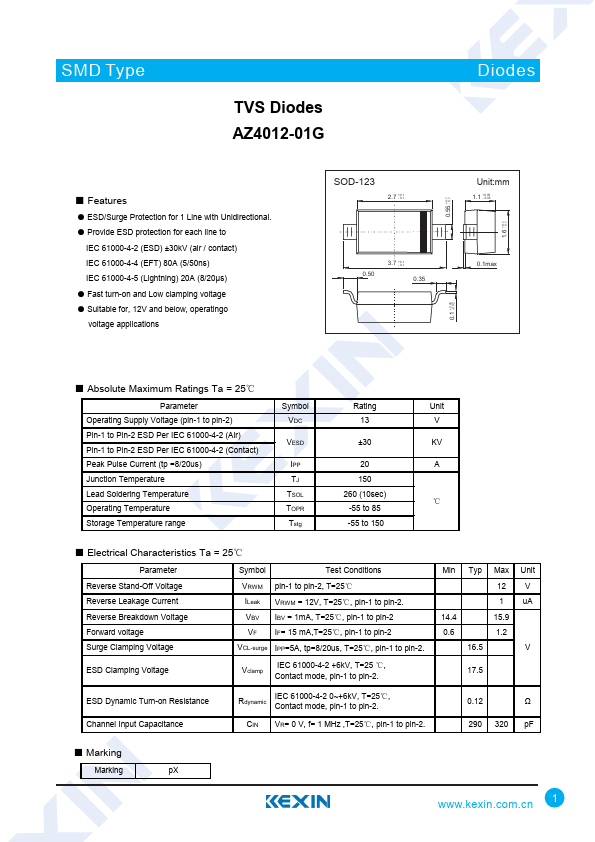

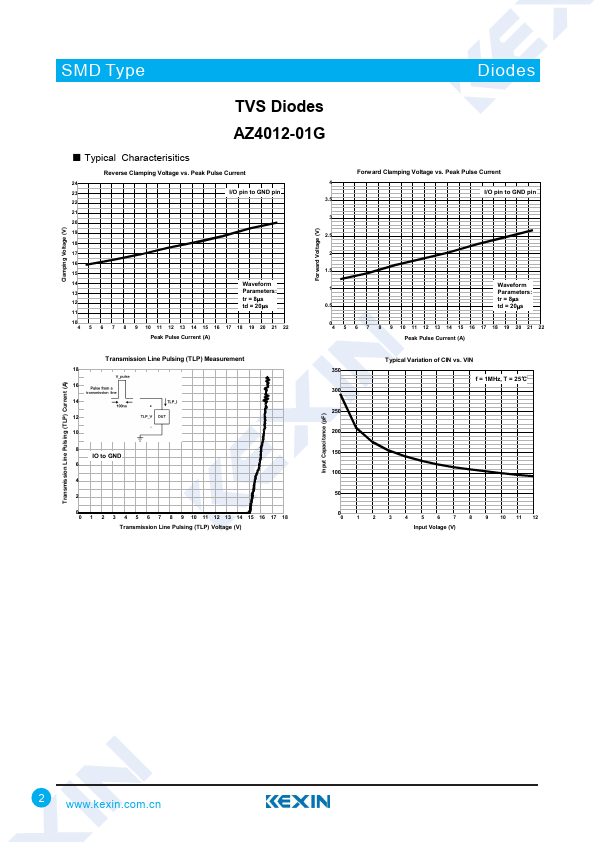

AZ4012-01G
Features
- ESD/Surge Protection for 1 Line with Unidirectional.
- Provide ESD protection for each line to
IEC 61000-4-2 (ESD) ±30k V (air / contact) IEC 61000-4-4 (EFT) 80A (5/50ns) IEC 61000-4-5 (Lightning) 20A (8/20μs)
- Fast turn-on and Low clamping voltage
- Suitable for, 12V and below, operatingo voltage applications
SOD-123
2.7 +0.1
- 0.1
3.7 +0.1
- 0.1 0.35
+0.05 0.1 -0.02
+0.1 0.55
- 0.1
+0.1 1.6
- 0.1
Diodes
Unit:mm
1.1 +0.05
- 0.05 0.1max
- Absolute Maximum Ratings Ta = 25℃
Parameter
Symbol
Rating
Unit
Operating Supply Voltage (pin-1 to pin-2)
Pin-1 to Pin-2 ESD Per IEC 61000-4-2 (Air)
VESD
±30
Pin-1 to Pin-2 ESD Per IEC 61000-4-2 (Contact)
Peak Pulse Current (tp =8/20us)
Junction Temperature
Lead Soldering Temperature Operating Temperature
TSOL
260...
