BAV70S
BAV70S is High-Speed Double Diode Array manufactured by Kexin Semiconductor.

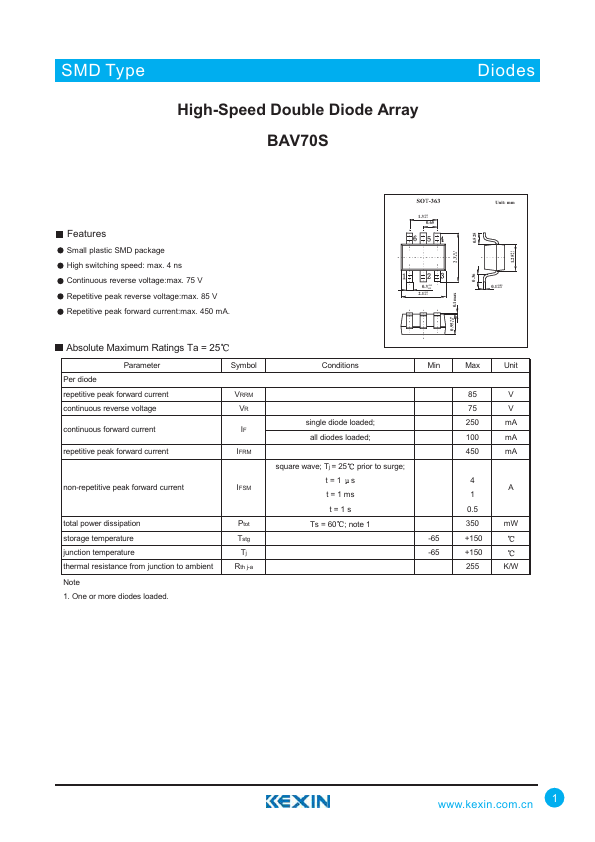

Features
Small plastic SMD package High switching speed: max. 4 ns Continuous reverse voltage:max. 75 V Repetitive peak reverse voltage:max. 85 V Repetitive peak forward current:max. 450 m A.
0.1max
SOT-363
1.3+0.1 -0.1 0.65
Unit: mm
+0.15 2.3 -0.15
0.3+0.1 -0.1
2.1+0.1 -0.1
0.1+0.05 -0.02
+0.05 0.95 -0.05
Absolute Maximum Ratings Ta = 25
Parameter
Symbol
Conditions
Min
Per diode repetitive peak forward current
VRRM continuous reverse voltage
VR continuous forward current single diode loaded; IF all diodes loaded; repetitive peak forward current
IFRM square wave; Tj = 25 prior to surge; non-repetitive peak forward current
IFSM t=1 s t = 1 ms t=1s total power dissipation
Ptot
Ts = 60 ; note 1 storage temperature
Tstg
-65 junction temperature
Tj
-65 thermal resistance from junction to ambient
Rth j-a

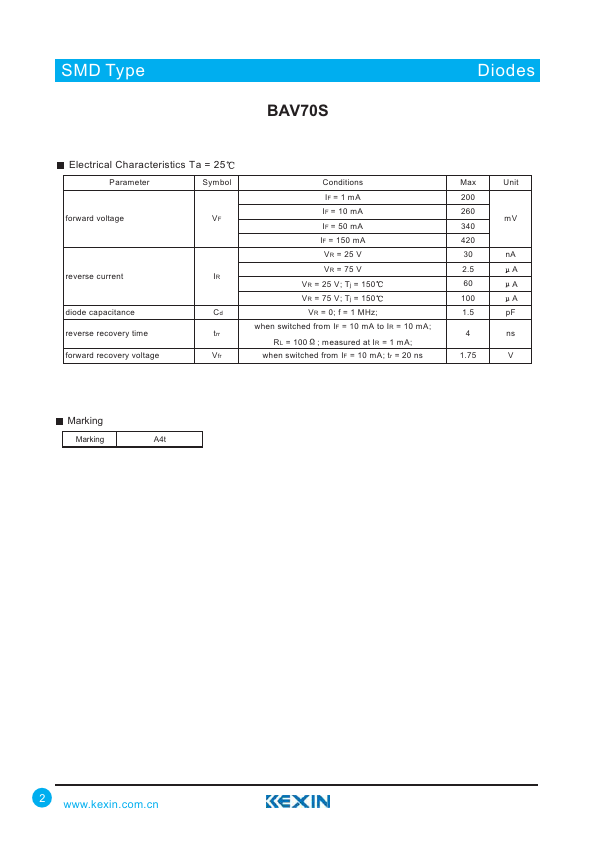

Note
1. One or more diodes loaded.
Max
Unit
250 m A
100 m A
450 m A
4...
