Unisonic Technologies BAV70S

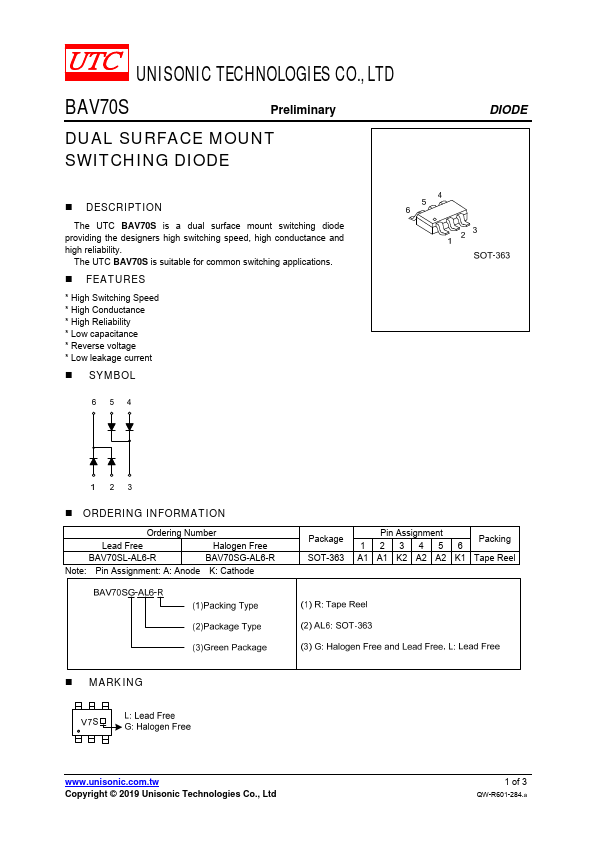

BAV70S is a dual surface mount switching diode providing the designers high switching speed, high conductance and high reliability. The UTC BAV70S is suitable for common switching applications.| Part No. | BAV70S |
|---|---|
| Datasheet | BAV70S Download |
| Manufacturer |  Unisonic Technologies |
| Description | DUAL SURFACE MOUNT SWITCHING DIODE |
| Buy | Stock & Price |
DESCRIPTION
The UTC●
FEATURES
* High Switching Speed * High Conductance * High Reliability * Low capacitance * Reverse voltage * Low leakage current● SYMBOL DIODE
● ORDERING INFORMATION Ordering Number Lead Free Halogen Free BAV70SL-AL6-R BAV70SG-AL6-R Note: Pin Assignment: A: Anode K: Cathode Package SOT-363 1 Pin Assignment 2345 6 Packing A1 A1 K2 A2 A2 K1 Tape Reel
● MARKING Copyright © 2019 Unisonic Technologies Co., Ltd 1 of 3 QW-R601-284.a BAV70S Preliminary DIODE
●

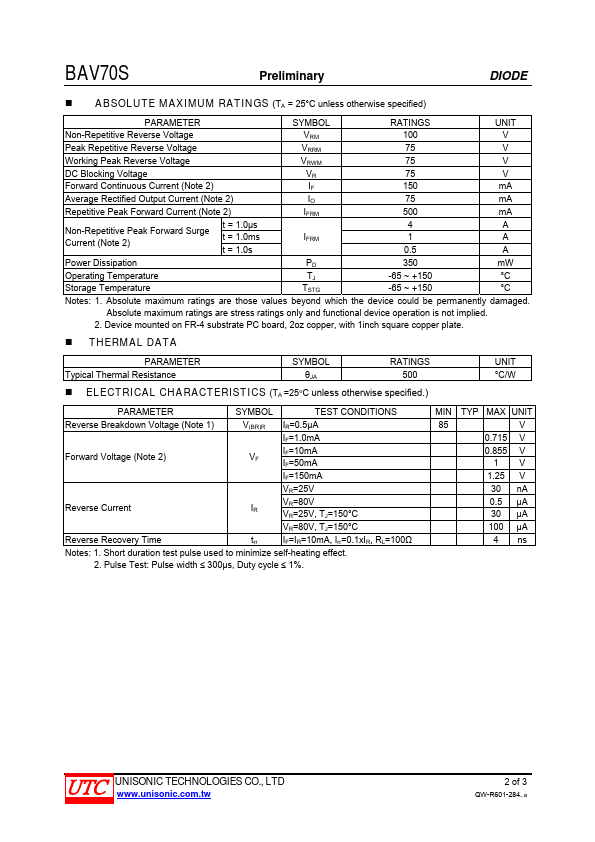

ABSOLUTE MAXIMUM RATINGS
(TA = 25°C unless otherwise specified) PARAMETER SYMBOL RATINGS UNIT Non-Repetitive Reverse Voltage VRM 100 V Peak Repetitive Reverse Voltage Working Peak Reverse Voltage VRRM 75 V VRWM 75 V DC Blocking Voltage Forward Continuous Current (Note 2) VR 75 V IF 150 mA Average Rectified Output Current (Note 2) IO Repetitive Peak Forward Current (Note 2) IFRM 75 mA 500 mA Non-Repetitive Peak Forward Surge Current (Note 2) t = 1.0μs t = 1.0ms IFRM 4 1 A A t = 1.0s 0.5 A Power Dissipation PD 350 mW Operating Temperature TJ -65 ~ +150 °C Storage Temperature TSTG -65 ~ +150 °C Notes: 1.
