BSP16 Datasheet PNP High-voltage Transistor

Manufacturer: Kexin Semiconductor

Overview: SMD Type Transistors 0.1max +0.05 0.90 -0.05 +0.15 1.65 -0.15 PNP High-Voltage Transistor.

Datasheet Details

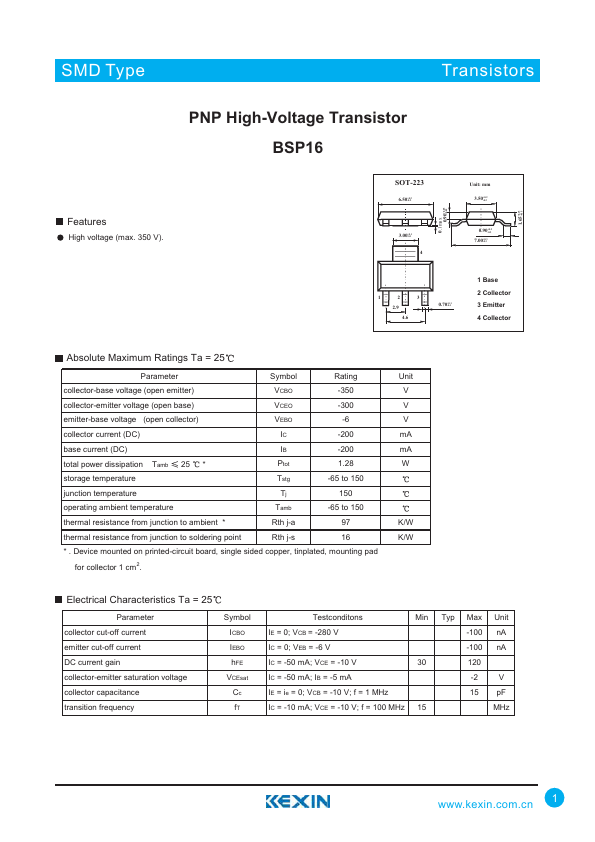

High voltage (max. 350 V). SOT-223 6.50+0.2 -0.2 Unit: mm 3.50+0.2 -0.2 3.00+0.1 -0.1 4 0.90+0.2 -0.2 7.00+0.3 -0.3 1 2 3 2.9 4.6 0.70+0.1 -0.1 1 Base 2 Collector 3 Emitter 4 Collector Absolute Maximum Ratings Ta = 25 Parameter Symbol Rating Unit collector-base voltage (open emitter) VCBO -350 V collector-emitter voltage (open base) VCEO -300 V emitter-base voltage (open collector) VEBO -6 V collector current (DC) IC -200 mA base current (DC) IB -200 mA total.

Part Number	Description	Manufacturer
BSP16	PNP high-voltage transistor	NXP
BSP16	PNP SILICON PLANAR HIGH VOLTAGE TRANSISTOR	Zetex Semiconductors
BSP16T1	PNP SILICON HIGH VOLTAGE TRANSISTOR	Motorola Inc
BSP16T1	High Voltage Transistors	ON Semiconductor
BSP16T1G	High Voltage Transistors	ON Semiconductor
