ESD5Z2.5 - Surface Mount Transient Voltage Suppressor
Kexin Semiconductor
Key Features
s.
Peak Power up to 200 Watts @ 8 x 20 μs Pulse.
Low Leakage.
Response Time is Typically＜ 1 ns.
ESD Rating of Class 3 (> 16 kV) per Human Body Model
1
SOD-523
1.2+0.1 -0.1
+
+0.050.3 -0.05
Unit: mm 0.6+0.1
-0.1
-
1.6+0.1 -0.1
0.77max
+0.050.8 -0.05
+0.050.1 -0.02
0.07max
2.
Absolute Maximum Ratings Ta = 25℃
Parameter
Symbol
ESD Voltage Per Human Body Model Per Machine Model
Electrostatic discharge IEC61000-4-2 Air discharge IEC61000-4-2 ContactAir discharge.
The following content is an automatically extracted verbatim text
from the original manufacturer datasheet and is provided for reference purposes only.
View original datasheet text
SMD Type

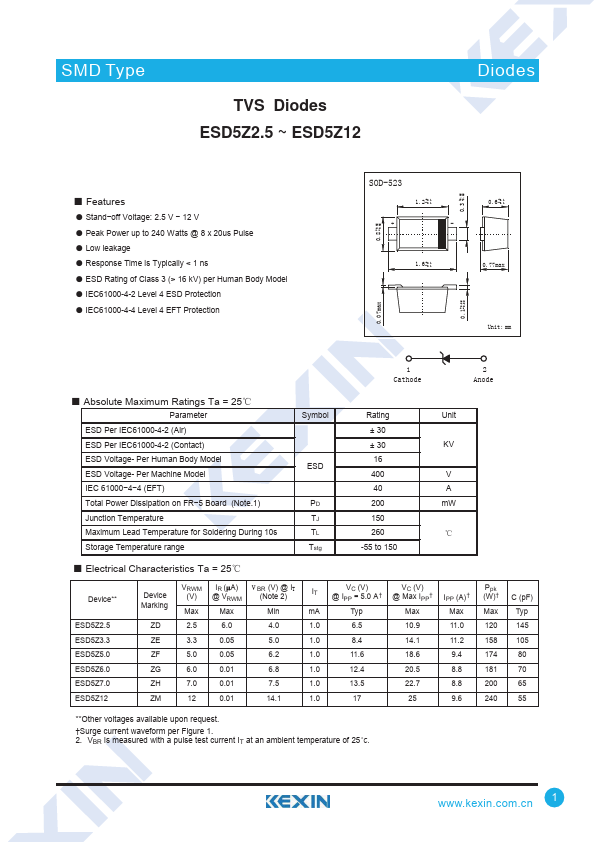

Surface Mount Transient Voltage Suppressor ESD5Z2.5
TVS
■ Features
● Peak Power up to 200 Watts @ 8 x 20 μs Pulse ● Low Leakage ● Response Time is Typically＜ 1 ns ● ESD Rating of Class 3 (> 16 kV) per Human Body Model
1
SOD-523
1.2+0.1 -0.1
+
+0.050.3 -0.05
Unit: mm 0.6+0.1
-0.1
-
1.6+0.1 -0.1
0.77max
+0.050.8 -0.05
+0.050.1 -0.02
0.
ESD5Z2.5 Datasheet
