Datasheet4U.com

GBLC24C

Manufacturer: Kexin Semiconductor

This datasheet includes multiple variants, all published together in a single manufacturer document.

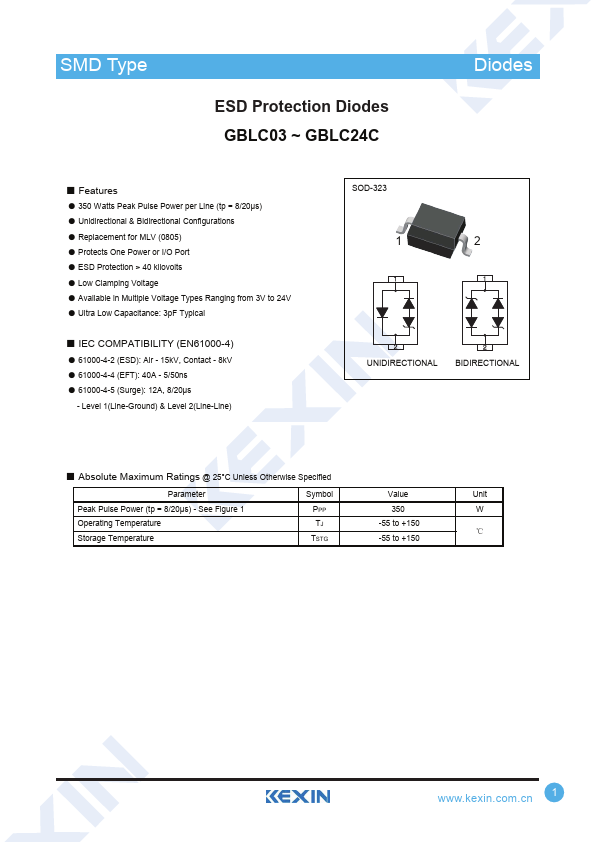

GBLC24C datasheet preview

Datasheet Details

Part number	GBLC24C
Datasheet	GBLC24C GBLC03 Datasheet (PDF)
File Size	297.35 KB
Manufacturer	Kexin Semiconductor
Description	ESD Protection Diodes

GBLC24C Overview

SMD Type ESD Protection Diodes GBLC03 ~ GBLC24C TransDisiotodress.

GBLC24C Key Features

350 Watts Peak Pulse Power per Line (tp = 8/20µs)
Unidirectional & Bidirectional Configurations
Replacement for MLV (0805)
Protects One Power or I/O Port
ESD Protection > 40 kilovolts
Low Clamping Voltage
Available in Multiple Voltage Types Ranging from 3V to 24V
Ultra Low Capacitance: 3pF Typical
IEC PATIBILITY (EN61000-4)
61000-4-2 (ESD): Air
